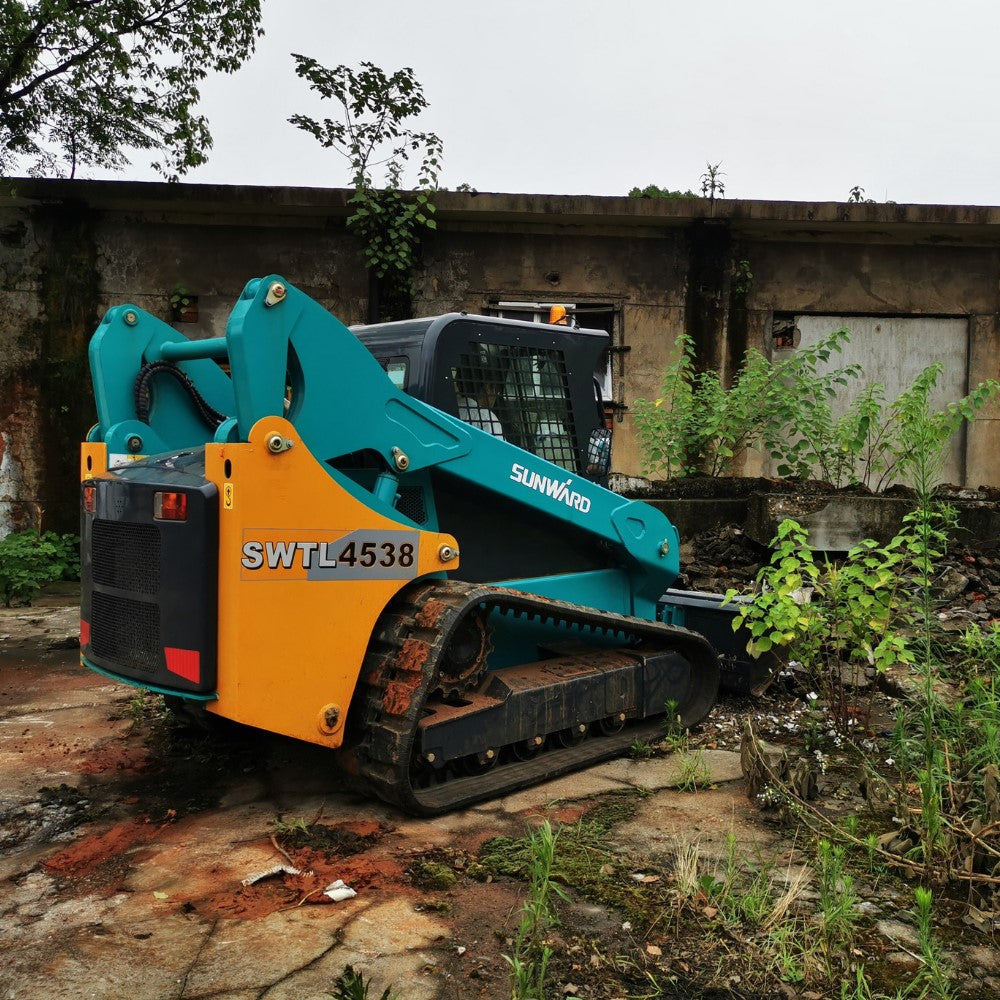

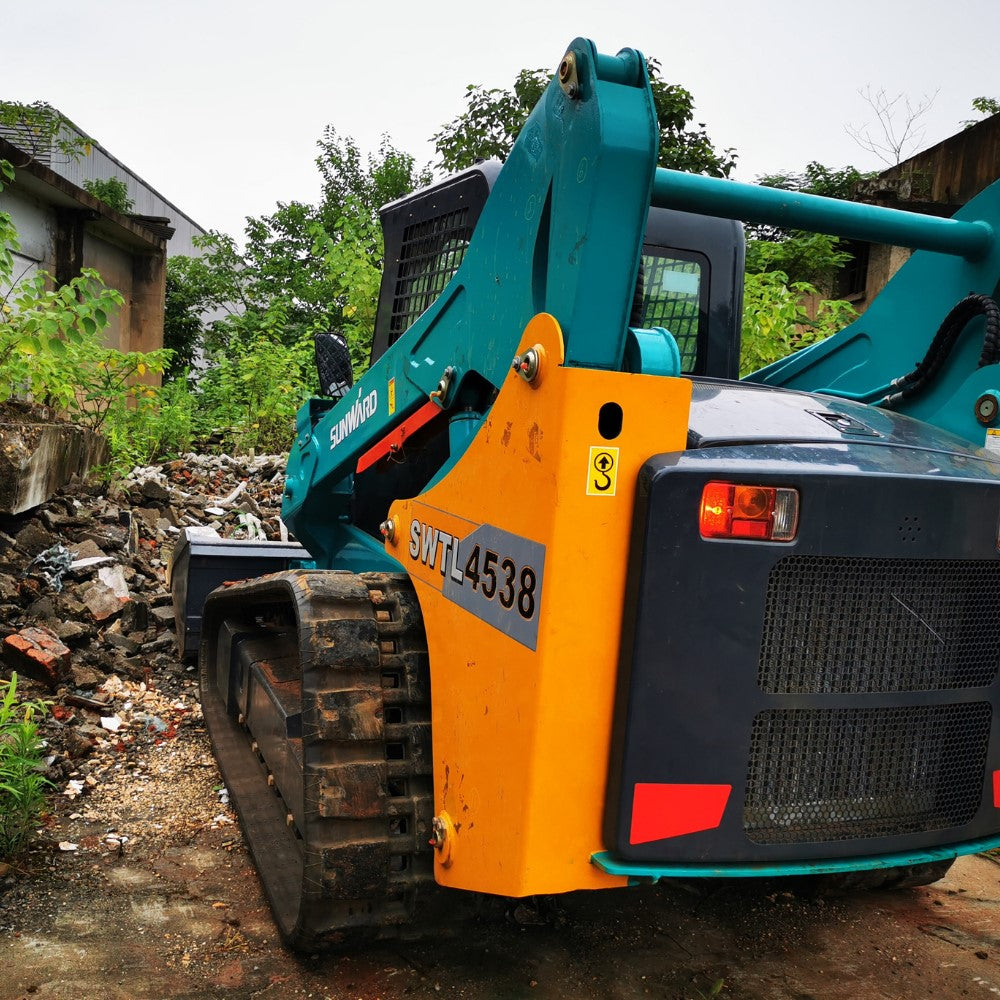

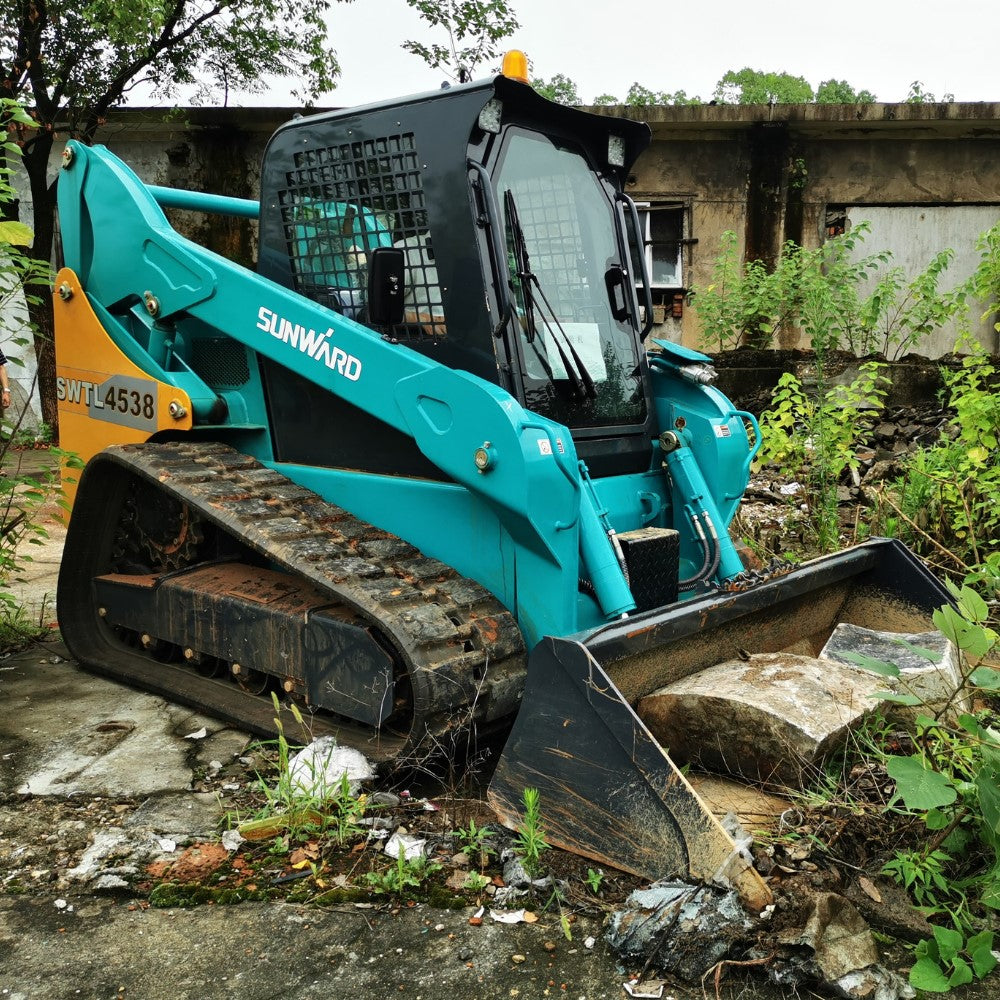

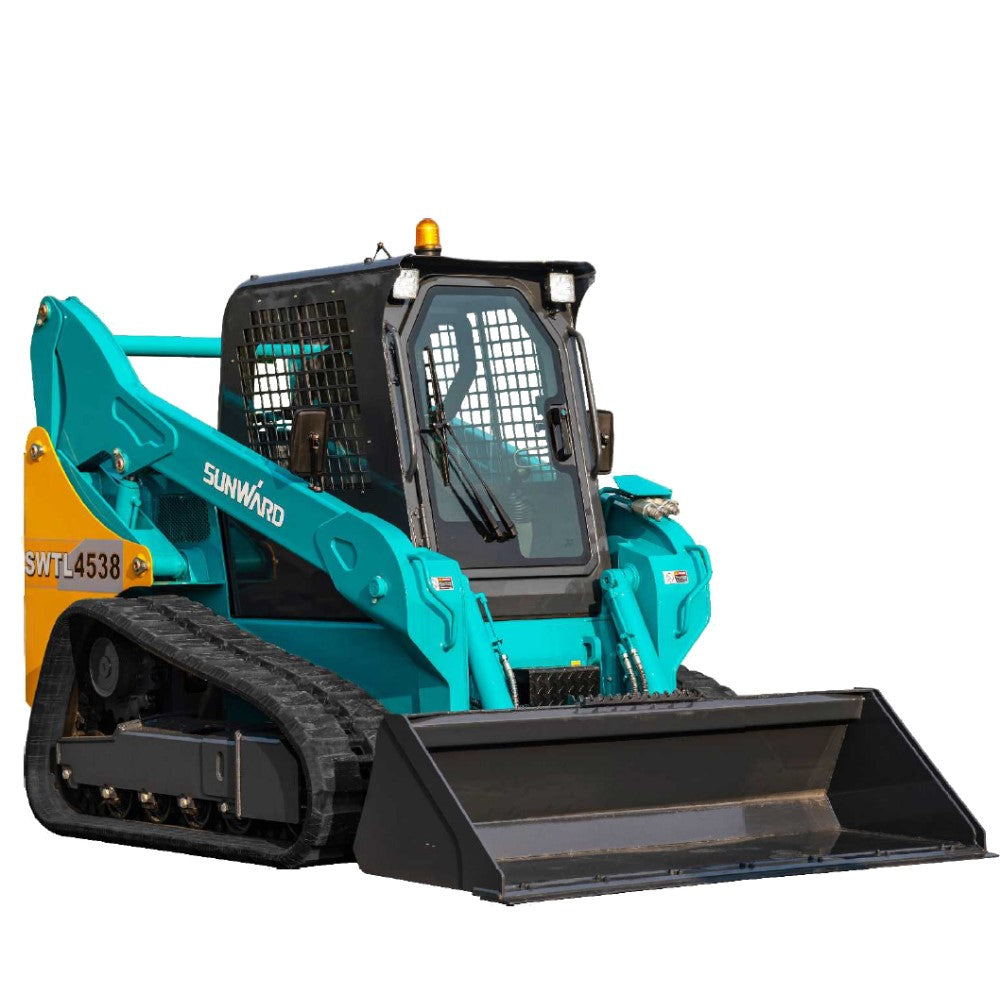

SWTL 4538
Need for a compact and versatile loader with good lift capacity, plenty of power whatever the terrain?
Thanks to the suspended undercarriage system and the tracks, the Sunward SWTL 4538 compact track loader offers excellent performance with outstanding drawbar power for operation on rough terrains like mulch, rock, or dirt.
It is also highly versatile and compact enough to be easily manoeuvrable in small spaces. Despite its compact size, you will be impressed by the great breakout force and huge lift capacity.
The powerful Kubota engine offers performance, exceptional reliability, long service life and complies with the European Union’s Stage V emission requirements. Maintenance and service are also easily accessible.
Daily maintenance is very easy since service checkpoints and cooling system components are accessible at ground level from the rear door. When it comes to service, major components are also easily and quickly accessible by tilting the ROPS/FOPS cab.
When it comes to comfort, the SWTL 4538 offers a spacious cab with a wide entrance, a comfortable seat, ergonomic controls, and excellent all-around visibility.
Last but not least, safety is not at rest thanks to the ROPS/FOPS cab coupled with the excellent visibility and great stability of the machine.
Discover all the other advantages of the Sunward SWTL 4538.
MADE FOR EUROPE
Like all the Sunward machines on the European market, the SWTL 4538 is designed to meet European customer needs and has all the EU certifications.
BUILT FOR MULTITASKING
The Sunward SWTL 4538 compact track loader has been built with versatility, compactness, and extreme operation sites in mind, to be easily manoeuvrable in small spaces and rough terrain.
It is equipped with a suspended undercarriage system and tracks, offering excellent performance with outstanding drawbar power for operation on rough terrains like mulch, rock, or dirt.
A compact loader starts with how well it is designed for transportation. The SWTL 4538 does more than simply align with the EU’s transportation regulations – truly compact (1 950 mm width) and lightweight (4 400 kg), its small frame allows easy, safe, and secure transport behind a pickup truck.
The SWTL 4538 can be easily fitted with a wide range of attachments to answer a variety of applications, with perfect control of all functions thanks to the joysticks and double-accelerator control (manual or foot pedal).
RELIABLE PERFORMANCE
Despite its compact size, the SWTL 4538 has impressive breakout force, huge lift capacity and fast cycle times.
The powerful Kubota V3307 engine delivers a power of 55.4 kW (@2 600 rpm) and offers exceptional reliability even in severe, high load conditions, a long service life and complies with the European Union’s Stage V emission requirements.
COMFORT AS STANDARD
Comfort of the Sunward SWTL 4538 starts with the easy cab access. Once seated, the SWTL 4538 offers a spacious cab, air conditioning, a comfortable seat, and ergonomic controls for maximum operating comfort. Operators will be also impressed by the excellent all-around visibility. It is a real pleasure to operate a Sunward skid-steer.
SERVICE MADE EASY
Because we care about your operative costs, maintenance and service have been made easy. Daily preventive maintenance is very simple, since service checkpoints and cooling system components are accessible at ground-level from the rear door. When it comes to service, major components are also easily and quickly accessible by tilting the ROPS/FOPS cab.
SAFETY IS NOT OPTION
Safety is and will always be a priority for Sunward. The SWTL 4538 has been designed for operator safety. Thus, the ROPS/FOPS cab and rear window exit coupled with the excellent visibility and great stability of the machine guaranty maximum safety. A seat switch and arm bar switch also prevent the machine from being started without an operator present. In terms of systems, the SWTL 4538 skid steer has been equipped with emergency descent function, so that the boom can safely conduct the emergency descent in the event of an unexpected engine shut down.
Like all the Sunward machines on the European market, the SWTL 4538 is designed to meet European customer needs and has all the EU certifications.
BUILT FOR MULTITASKING
The Sunward SWTL 4538 compact track loader has been built with versatility, compactness, and extreme operation sites in mind, to be easily manoeuvrable in small spaces and rough terrain.
It is equipped with a suspended undercarriage system and tracks, offering excellent performance with outstanding drawbar power for operation on rough terrains like mulch, rock, or dirt.
A compact loader starts with how well it is designed for transportation. The SWTL 4538 does more than simply align with the EU’s transportation regulations – truly compact (1 950 mm width) and lightweight (4 400 kg), its small frame allows easy, safe, and secure transport behind a pickup truck.
The SWTL 4538 can be easily fitted with a wide range of attachments to answer a variety of applications, with perfect control of all functions thanks to the joysticks and double-accelerator control (manual or foot pedal).
RELIABLE PERFORMANCE
Despite its compact size, the SWTL 4538 has impressive breakout force, huge lift capacity and fast cycle times.
The powerful Kubota V3307 engine delivers a power of 55.4 kW (@2 600 rpm) and offers exceptional reliability even in severe, high load conditions, a long service life and complies with the European Union’s Stage V emission requirements.
COMFORT AS STANDARD
Comfort of the Sunward SWTL 4538 starts with the easy cab access. Once seated, the SWTL 4538 offers a spacious cab, air conditioning, a comfortable seat, and ergonomic controls for maximum operating comfort. Operators will be also impressed by the excellent all-around visibility. It is a real pleasure to operate a Sunward skid-steer.
SERVICE MADE EASY
Because we care about your operative costs, maintenance and service have been made easy. Daily preventive maintenance is very simple, since service checkpoints and cooling system components are accessible at ground-level from the rear door. When it comes to service, major components are also easily and quickly accessible by tilting the ROPS/FOPS cab.
SAFETY IS NOT OPTION
Safety is and will always be a priority for Sunward. The SWTL 4538 has been designed for operator safety. Thus, the ROPS/FOPS cab and rear window exit coupled with the excellent visibility and great stability of the machine guaranty maximum safety. A seat switch and arm bar switch also prevent the machine from being started without an operator present. In terms of systems, the SWTL 4538 skid steer has been equipped with emergency descent function, so that the boom can safely conduct the emergency descent in the event of an unexpected engine shut down.
DIMENSIONS & WEIGHT
Operating weight 4 400 kg
Length without bucket 2 969 mm
Length with standard bucket 3 750 mm
Width without bucket 1 950 mm
Height to top of ROPS 2 071 mm
Ground clearance 228 mm
Turning radius from center (standard bucket) 2 253 mm
ENGINE
Model Kubota V3307-CR-TE5B
Emission rating EU Stage V
Rated power output 55.4 kW
PERFORMANCE
Rated operating capacity 1200 kg
Tipping load 3 430 kg
Bucket breakout force (standard bucket) 3 385 kg
Boom breakout force 2 600 kg
Travel speed 13 km/h
Operating weight 4 400 kg
Length without bucket 2 969 mm
Length with standard bucket 3 750 mm
Width without bucket 1 950 mm
Height to top of ROPS 2 071 mm
Ground clearance 228 mm
Turning radius from center (standard bucket) 2 253 mm
ENGINE
Model Kubota V3307-CR-TE5B
Emission rating EU Stage V
Rated power output 55.4 kW
PERFORMANCE
Rated operating capacity 1200 kg
Tipping load 3 430 kg
Bucket breakout force (standard bucket) 3 385 kg
Boom breakout force 2 600 kg
Travel speed 13 km/h
Product enquiry
Sunward Machinery
On Site Demo Available
Want to try before you buy? Visit our site and get a hands-on demo of this product in the company of a Hamstead expert. Just choose the option in the enquiry form and one of the team will get back to you.
