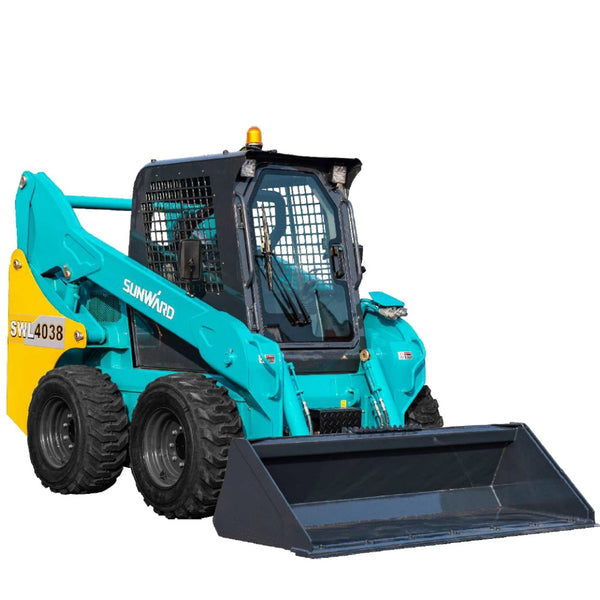

SWL 4038
Need for a compact and versatile skid-steer loader with good lift capacity and plenty of power?
The Sunward SWL 4038 skid steer loader is highly versatile and compact enough to be easily manoeuvrable in small spaces.
Despite its compact size, you will be impressed by the great breakout force and huge lift capacity. The powerful Kubota engine offers performance, exceptional reliability, a long service life and complies with the European Union’s Stage V emission requirements.
Maintenance and service are also easily accessible. Daily maintenance is very easy, since service checkpoints and cooling system components are accessible at ground-level from the rear door.
When it comes to service, major components are also easily and quickly accessible by tilting the ROPS/FOPS cab.
When it comes to comfort, the SWL 4038 offers a spacious cab with a wide entrance, a comfortable seat, ergonomic controls, and an excellent all-around visibility.
Last but not least, safety is not at rest thanks to the ROPS/FOPS cab coupled with the excellent visibility and great stability of the machine
MADE FOR EUROPE
Like all the Sunward machines on the European market, the SWL 4038 is designed to meet European customer needs and has all the EU certifications.
BUILT FOR MULTITASKING
The Sunward SWL 4038 skid steer loader has been built with versatility and compactness in mind, to be easily manoeuvrable in small spaces.
A skid-steer versality starts with how well it is designed for transportation. The SWL 4038 does more than simply align with the EU’s transportation regulations – truly compact (1 812 mm width) and lightweight (3 650 kg), its small frame allows easy, safe and secure transport behind a pickup truck.
The SWL 4038 can be easily fitted with a wide range of attachments to answer a variety of applications, with perfect control of all functions thanks to the joysticks and double-accelerator control (manual or foot pedal).
RELIABLE PERFORMANCE
Despite its compact size, the SWL 4038 has impressive breakout force, huge lift capacity and fast cycle times.
The powerful Kubota V3307 engine delivers a power of 55.4 kW (@2 600 rpm) and offers exceptional reliability even in severe, high load conditions, a long service life and complies with the European Union’s Stage V emission requirements.
COMFORT AS STANDARD
Comfort of the Sunward SWL 4038 starts with the easy cab access. Once seated, the SWL 4038 offers a spacious cab, air conditioning, a comfortable seat, and ergonomic controls for maximum operating comfort. Operators will be also impressed by the excellent all-around visibility. It is a real pleasure to operate a Sunward skid-steer.
SERVICE MADE EASY

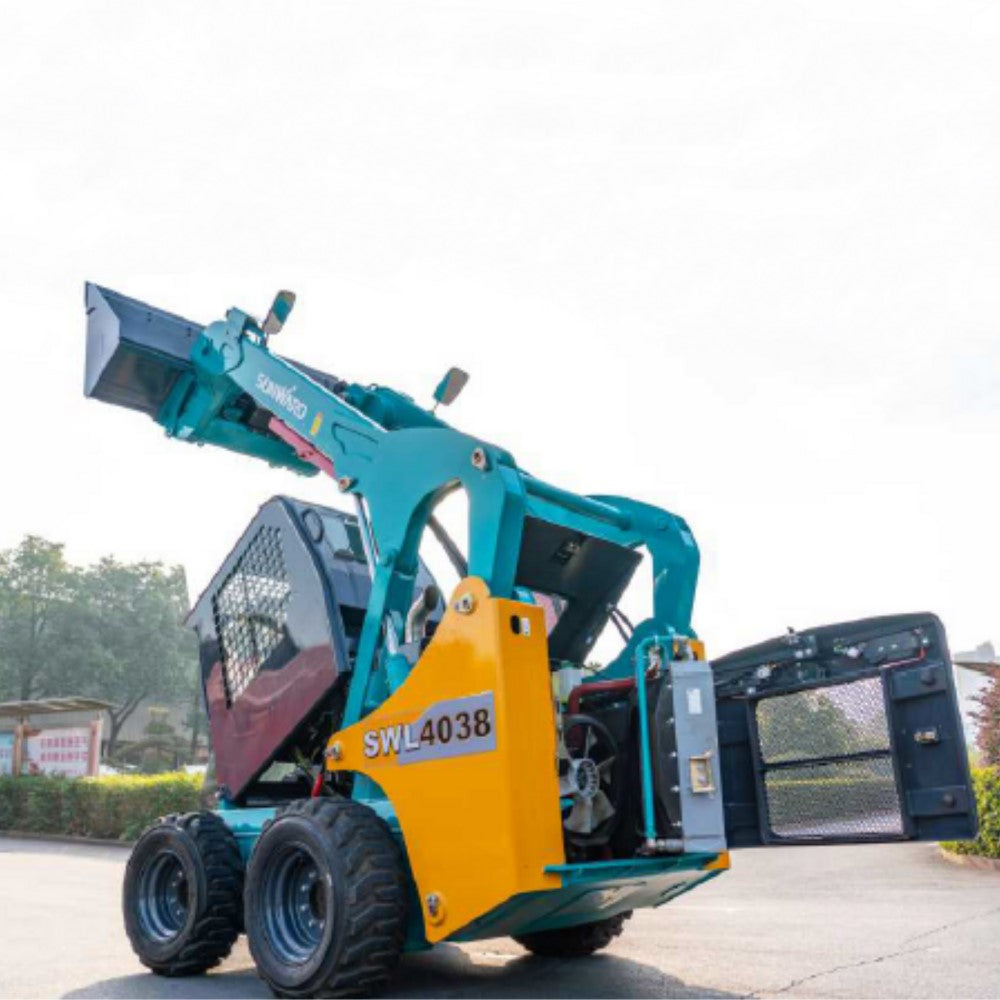

Because we care about your operative costs, maintenance and service have been made easy. Daily preventive maintenance is very simple, since service checkpoints and cooling system components are accessible at ground-level from the rear door. When it comes to service, major components are also easily and quickly accessible by tilting the ROPS/FOPS cab.
SAFETY IS NOT OPTION
Safety is and will always be a priority for Sunward. The SWL 4038 has been designed for operator safety. Thus, the ROPS/FOPS cab and rear window exit coupled with the excellent visibility and great stability of the machine guaranty maximum safety. A seat switch and arm bar switch also prevent the machine from being started without an operator present. In terms of systems, the SWL 4038 skid steer has been equipped with emergency descent function, so that the boom can safely conduct the emergency descent in the event of an unexpected engine shut down.
Like all the Sunward machines on the European market, the SWL 4038 is designed to meet European customer needs and has all the EU certifications.
BUILT FOR MULTITASKING
The Sunward SWL 4038 skid steer loader has been built with versatility and compactness in mind, to be easily manoeuvrable in small spaces.
A skid-steer versality starts with how well it is designed for transportation. The SWL 4038 does more than simply align with the EU’s transportation regulations – truly compact (1 812 mm width) and lightweight (3 650 kg), its small frame allows easy, safe and secure transport behind a pickup truck.
The SWL 4038 can be easily fitted with a wide range of attachments to answer a variety of applications, with perfect control of all functions thanks to the joysticks and double-accelerator control (manual or foot pedal).
RELIABLE PERFORMANCE
Despite its compact size, the SWL 4038 has impressive breakout force, huge lift capacity and fast cycle times.
The powerful Kubota V3307 engine delivers a power of 55.4 kW (@2 600 rpm) and offers exceptional reliability even in severe, high load conditions, a long service life and complies with the European Union’s Stage V emission requirements.
COMFORT AS STANDARD
Comfort of the Sunward SWL 4038 starts with the easy cab access. Once seated, the SWL 4038 offers a spacious cab, air conditioning, a comfortable seat, and ergonomic controls for maximum operating comfort. Operators will be also impressed by the excellent all-around visibility. It is a real pleasure to operate a Sunward skid-steer.
SERVICE MADE EASY
Because we care about your operative costs, maintenance and service have been made easy. Daily preventive maintenance is very simple, since service checkpoints and cooling system components are accessible at ground-level from the rear door. When it comes to service, major components are also easily and quickly accessible by tilting the ROPS/FOPS cab.
SAFETY IS NOT OPTION
Safety is and will always be a priority for Sunward. The SWL 4038 has been designed for operator safety. Thus, the ROPS/FOPS cab and rear window exit coupled with the excellent visibility and great stability of the machine guaranty maximum safety. A seat switch and arm bar switch also prevent the machine from being started without an operator present. In terms of systems, the SWL 4038 skid steer has been equipped with emergency descent function, so that the boom can safely conduct the emergency descent in the event of an unexpected engine shut down.
DIMENSIONS & WEIGHT
Operating weight 3 650 kg
Length without bucket 2 969 mm
Length with standard bucket 3 750 mm
Width without bucket 1 812 mm
Height to top of ROPS 2 068 mm
Ground clearance 205 mm
Turning radius from center (standard bucket) 2 253 mm
ENGINE
Model Kubota V3307-CR-TE5B
Emission rating EU Stage V
Rated power output 55.4 kW
PERFORMANCE
Rated operating capacity 1 300 kg
Tipping load 2 600 kg
Bucket breakout force (standard bucket) 3 385 kg
Boom breakout force 2 600 kg
Travel speed 18 km/h
Operating weight 3 650 kg
Length without bucket 2 969 mm
Length with standard bucket 3 750 mm
Width without bucket 1 812 mm
Height to top of ROPS 2 068 mm
Ground clearance 205 mm
Turning radius from center (standard bucket) 2 253 mm
ENGINE
Model Kubota V3307-CR-TE5B
Emission rating EU Stage V
Rated power output 55.4 kW
PERFORMANCE
Rated operating capacity 1 300 kg
Tipping load 2 600 kg
Bucket breakout force (standard bucket) 3 385 kg
Boom breakout force 2 600 kg
Travel speed 18 km/h
