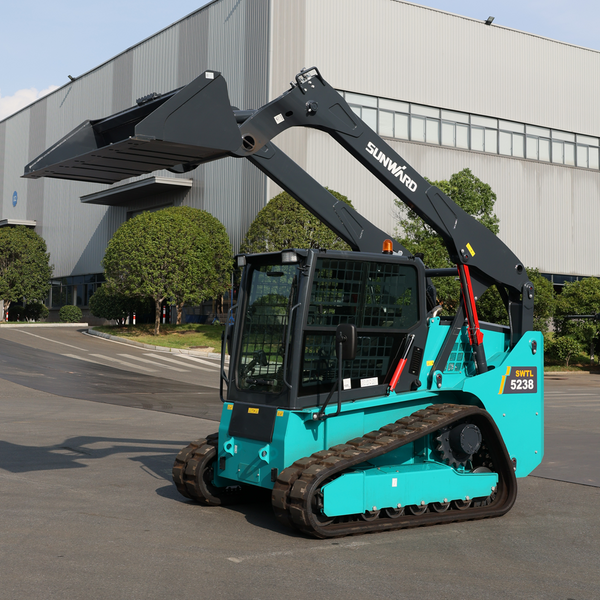

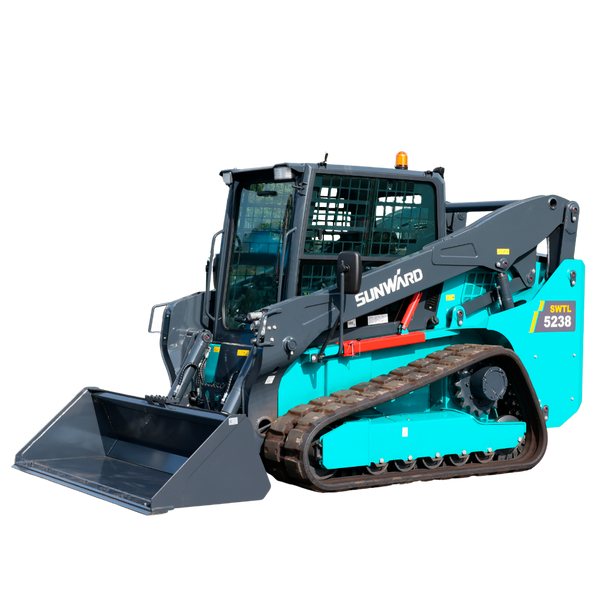

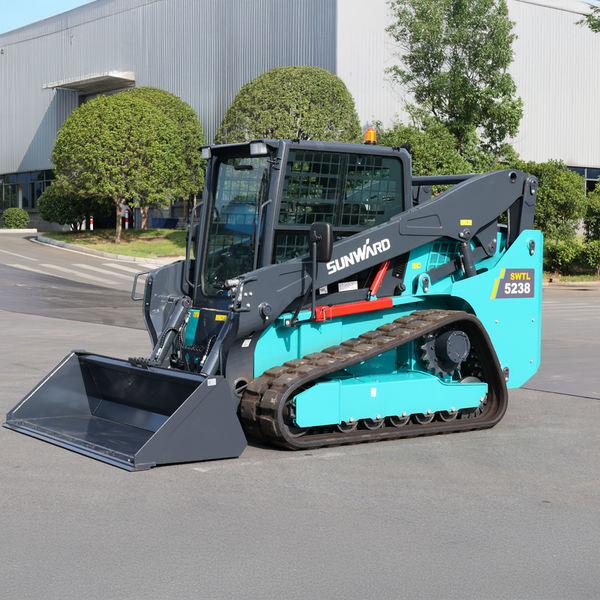

SUNWARD SWTL 5238 Tracked Skid Steer Loader
Looking for more power and performance in a compact track loader?
The Sunward SWTL 5238 is built for demanding applications, offering increased lifting capability and strong traction for efficient operation on challenging terrains.
Its compact design ensures easy maneuverability, making it suitable for both confined job sites and more demanding outdoor tasks.
The machine features a refined hydraulic system with electronically controlled assistance, delivering smooth, responsive operation and precise handling.
Operator comfort is enhanced by a spacious cab layout, intuitive controls, and excellent visibility, supporting productivity throughout the day.
Service and maintenance are simplified thanks to well-organized component layout and easy access via the tilting ROPS/FOPS cab.
Robust construction, stability, and safety-focused design allow operators to work with confidence in all conditions.
Discover the performance of the Sunward SWTL 5238.
MADE FOR EUROPE
Like all the Sunward machines on the European market, the SWTL 5238 is designed to meet European customer needs and has all the EU certifications.
BUILT FOR MULTITASKING
The Sunward SWTL 5238 compact track loader has been built with versatility, power, and demanding operation sites in mind, delivering exceptional performance in both confined spaces and challenging terrain.
A compact loader starts with how well it is designed for transportation. The SWTL 5238 offers a well-balanced profile – with a width of 2 015 mm and an operating weight of 5 375 kg – making it straightforward to transport while meeting EU Stage V emission standards.
The SWTL 5238 can be easily fitted with a wide range of attachments to answer a variety of applications, with precise control of all functions thanks to the hydraulic pilot control system and electronically controlled assistance integrated directly into the control levers.
RELIABLE PERFORMANCE
Despite its compact size, the SWTL 5238 delivers impressive breakout force, a rated load capacity of 1 500 kg, and fast cycle times.
The powerful Kubota V3800-TIE5B engine delivers 85.1 kW at 2 600 rpm with a maximum torque of 386 N.m, offering exceptional reliability even in severe, high-load conditions and a long service life.
COMFORT AS STANDARD
The comfort of the Sunward SWTL 5238 starts with easy cab access. Once seated, the SWTL 5238 offers a spacious cab, air conditioning, a comfortable seat, and ergonomic controls for maximum operating comfort.
Operators will be also impressed by the excellent all-around visibility. It is a real pleasure to operate a Sunward skid-steer.
SERVICE MADE EASY
Because we care about your operative costs, maintenance and service have been made easy. Daily preventive maintenance is very simple since service checkpoints and cooling system components are accessible at ground level from the rear door. When it comes to service, major components are also easily and quickly accessible by tilting the ROPS/FOPS cab.
SAFETY IS NOT AN OPTION
Safety is and will always be a priority for Sunward. The SWTL 5238 has been designed for operator safety.
Thus, the ROPS/FOPS cab and rear window exit coupled with the excellent visibility and great stability of the machine guarantee maximum safety.
A seat switch and armbar switch also prevent the machine from being started without an operator present.
In terms of systems, the SWTL 5238 skid steer has been equipped with an emergency descent function, so that the boom can safely conduct the emergency descent n the event of an unexpected engine shut down.
Like all the Sunward machines on the European market, the SWTL 5238 is designed to meet European customer needs and has all the EU certifications.
BUILT FOR MULTITASKING
The Sunward SWTL 5238 compact track loader has been built with versatility, power, and demanding operation sites in mind, delivering exceptional performance in both confined spaces and challenging terrain.
A compact loader starts with how well it is designed for transportation. The SWTL 5238 offers a well-balanced profile – with a width of 2 015 mm and an operating weight of 5 375 kg – making it straightforward to transport while meeting EU Stage V emission standards.
The SWTL 5238 can be easily fitted with a wide range of attachments to answer a variety of applications, with precise control of all functions thanks to the hydraulic pilot control system and electronically controlled assistance integrated directly into the control levers.
RELIABLE PERFORMANCE
Despite its compact size, the SWTL 5238 delivers impressive breakout force, a rated load capacity of 1 500 kg, and fast cycle times.
The powerful Kubota V3800-TIE5B engine delivers 85.1 kW at 2 600 rpm with a maximum torque of 386 N.m, offering exceptional reliability even in severe, high-load conditions and a long service life.
COMFORT AS STANDARD
The comfort of the Sunward SWTL 5238 starts with easy cab access. Once seated, the SWTL 5238 offers a spacious cab, air conditioning, a comfortable seat, and ergonomic controls for maximum operating comfort.
Operators will be also impressed by the excellent all-around visibility. It is a real pleasure to operate a Sunward skid-steer.
SERVICE MADE EASY
Because we care about your operative costs, maintenance and service have been made easy. Daily preventive maintenance is very simple since service checkpoints and cooling system components are accessible at ground level from the rear door. When it comes to service, major components are also easily and quickly accessible by tilting the ROPS/FOPS cab.
SAFETY IS NOT AN OPTION
Safety is and will always be a priority for Sunward. The SWTL 5238 has been designed for operator safety.
Thus, the ROPS/FOPS cab and rear window exit coupled with the excellent visibility and great stability of the machine guarantee maximum safety.
A seat switch and armbar switch also prevent the machine from being started without an operator present.
In terms of systems, the SWTL 5238 skid steer has been equipped with an emergency descent function, so that the boom can safely conduct the emergency descent n the event of an unexpected engine shut down.
Dimmensions
Operating weight 5375kg
Length without bucket 3130 mm
Length with standard bucket 3930 mm
Height to top of ROPS 2110 mm
Ground clearance 277 mm
Turning radius from center (standard bucket) 2385 mm
Engine
Model Kubota V3800-TIE5B
Emission rating EU Stage V
Rated power output 85.1 kW
Rated operating capacity 1500 kg
Tipping load 4286 kg
Bucket breakout force (standard bucket) 3900 kg
Boom breakout force 3000 kg
Travel speed 8/12 mph
Operating weight 5375kg
Length without bucket 3130 mm
Length with standard bucket 3930 mm
Height to top of ROPS 2110 mm
Ground clearance 277 mm
Turning radius from center (standard bucket) 2385 mm
Engine
Model Kubota V3800-TIE5B
Emission rating EU Stage V
Rated power output 85.1 kW
Rated operating capacity 1500 kg
Tipping load 4286 kg
Bucket breakout force (standard bucket) 3900 kg
Boom breakout force 3000 kg
Travel speed 8/12 mph
