SWTC 5D

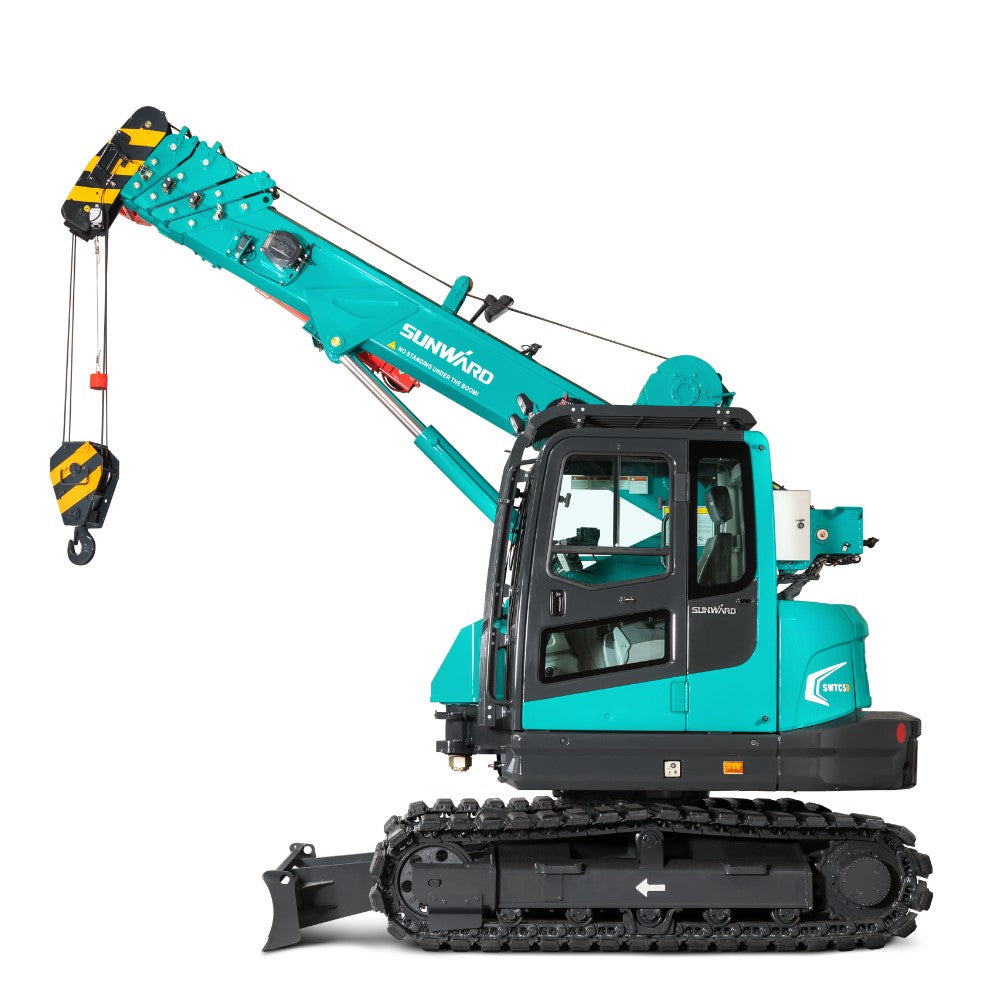

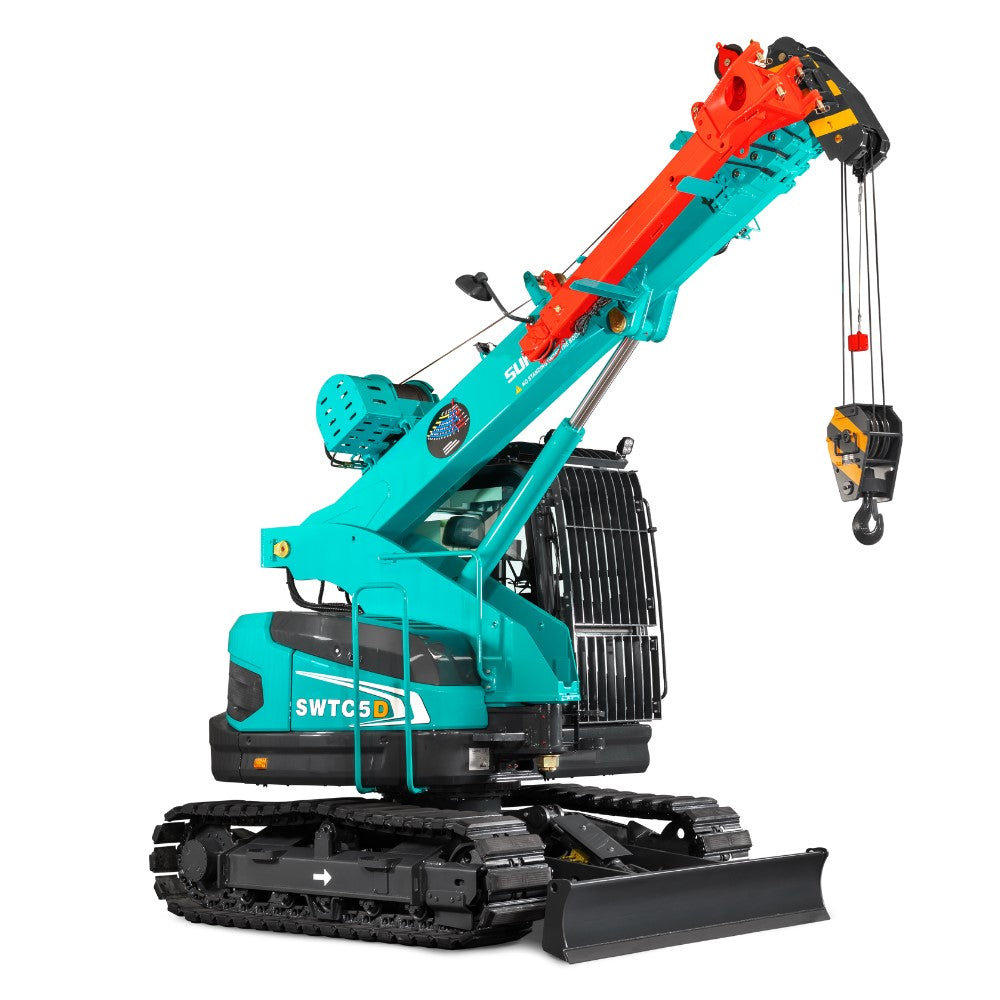

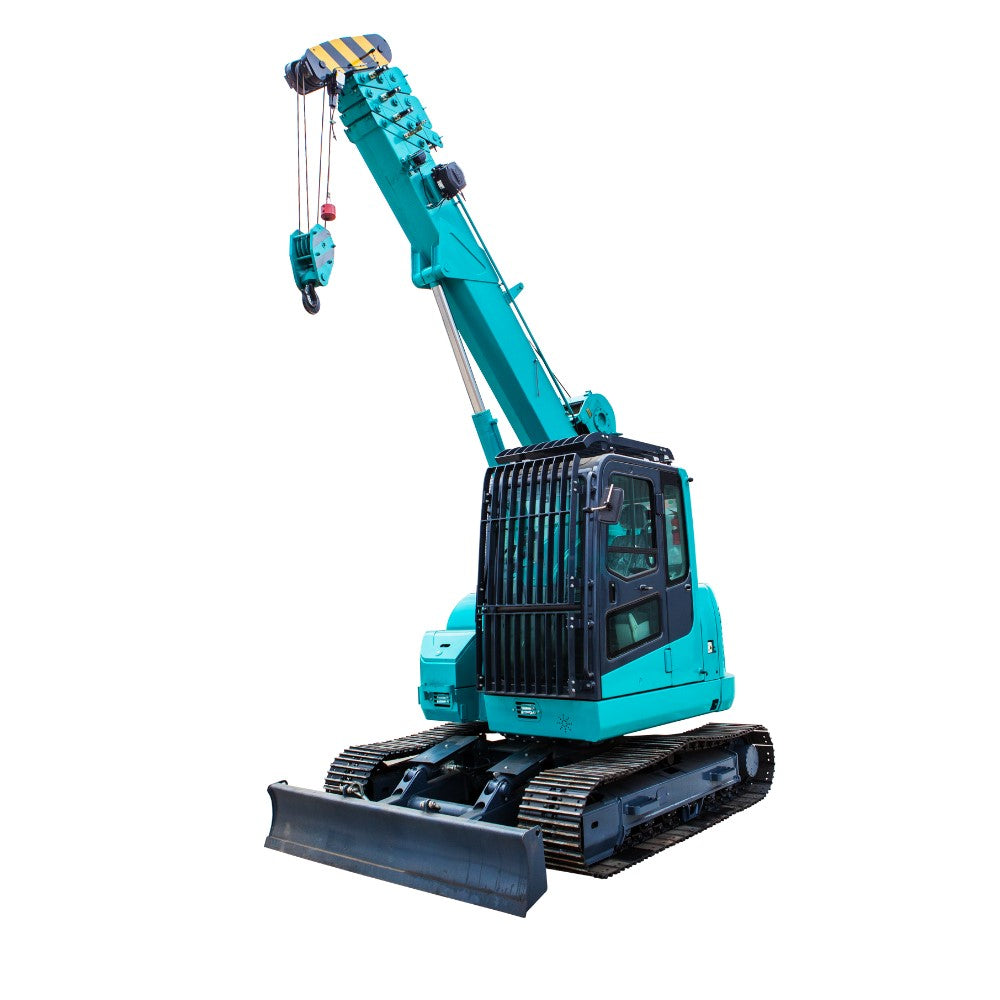

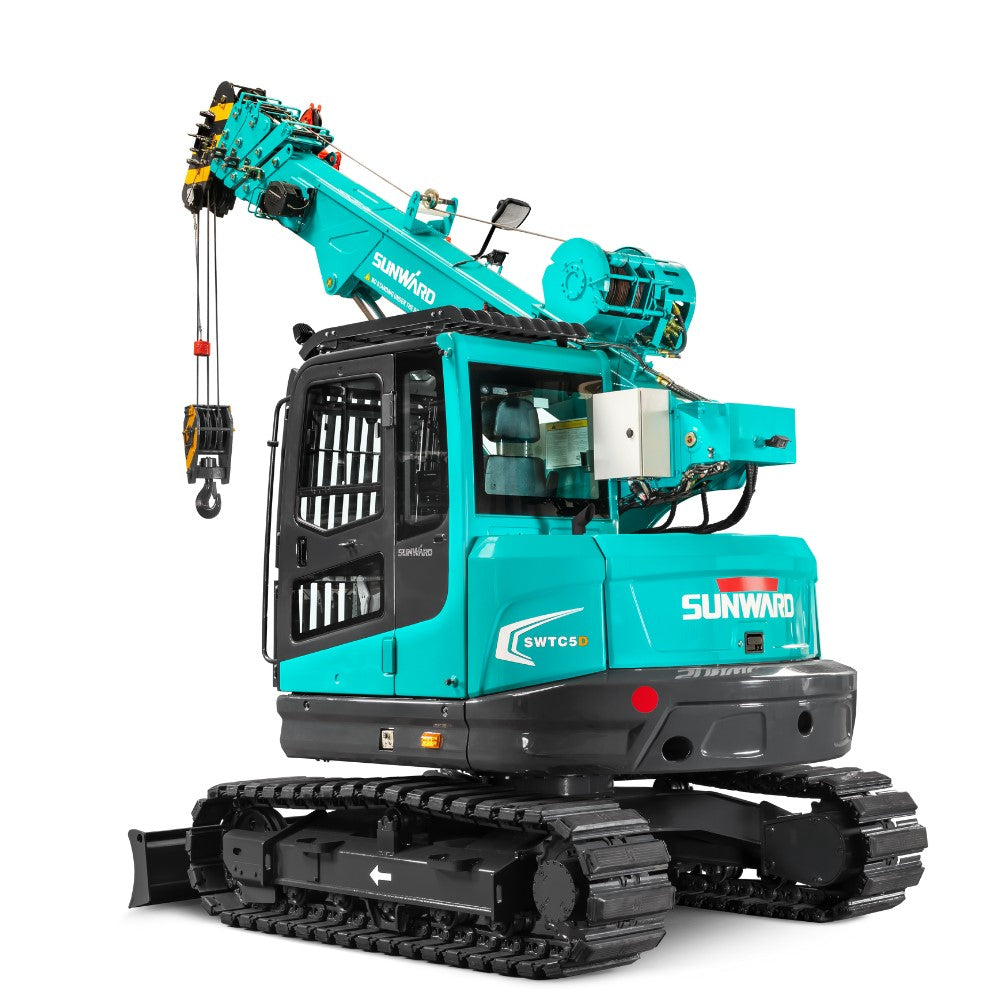

The Sunward SWTC 5D telescopic crawler crane offers the versatile combination of heavy-duty telescopic boom mounted on an undercarriage with a set of crawlers with compact dimensions.
This compact crawler crane is perfect for heavy lifting work with little set-up, enabling it to manoeuvre itself into very tight areas where other lifting equipment can't reach.
It offers also the ability to travel with a heavy load on any terrain, even the roughest.
The SWTC 5D combines the power of the Yanmar 4TNV98C engine, delivering 46.2 kW, with the latest European Stage V emission standards.
Of course, because we know that safety and comfort should go hand-in-hand, the SWTC 5D keeps you safe and provides every comfort in all working conditions.
In the Sunward tradition to always offer the best value for money, the SWTC 5D is no exception since it offers many features and up to 3 years of warranty as standard, at the right price.
The SWTC 5D compact telescopic crawler crane is ideal if you are looking for an innovative and versatile compact crawler crane.
Discover all the other advantages of the Sunward SWTC 5D
MADE FOR EUROPE
On top of its EU certification, the SWTC 5D has been developed specifically for the need of the European market. It meets of course the EU Stage V standard emissions requirements.
EXTREME MOBILITY
Thanks to its compact dimensions, the Sunward SWTC 5D telescopic crawler crane can be ready for action in a record time.
The machine can be transported easily to the site at a relatively low cost.
Then it can move safely on site, whatever the terrain conditions, thanks to the crawlers.
Last but not least, its compact size offers excellent maneuverability and makes it easy to operate in very tight areas
POWERFUL & RELIABLE ENGINE
At the heart of the SWTC 5D, we chose the Yanmar 4TNV98C engine complying with the European Union’s latest Stage V emission requirements.
This new generation engine features a common rail direct injection, assuring more precise fuel delivery and control, increased fuel economy, superior exhaust treatment, reduced emissions, and improved performances.
In terms of power, Yanmar 4TNV98C offers an output of 46.2 kW, allowing powerful performance to meet a wide range of applications.
PREMIUM COMPONENTS
All key components in Sunward excavators are carefully selected, from Yanmar engine to hydraulics.
Because hydraulics are often regarded as the heart of the machine, Sunward sources exclusively from the highest references in the market. Bosch Rexroth is the market leader in hydraulic pump innovation, design, and manufacture. So, it was natural for Sunward to select this premium brand to be our main pump supplier, as well as valves and joysticks. Our Bosch Rexroth hydraulic pumps deliver greater precision and reliability – which naturally reflects on the reliability of this machine.
We also selected KYB or Flutek for the traveling and swing motors.
HIGH REACH CAPACITY
The SWTC 5D has exceptional reach capacities. It very well positioned on the market with its almost 16.5 m long reach.
HEAVYLIFTER
Despite its compact size, the SWTC 5D is full of power, offering exceptional lifting capacities up to 5 000 kg (max.) that easily rivals the long-established compact telescopic crawler cranes on the market.
EASY TO MAINTAIN
To reduce maintenance time and cost for the SWTC 5D, the covers at the rear and on the side provide direct access to the service points. The standard service points – for fuel, oil and air filters – are directly accessed via the cover at the rear.
So, with very easy access to the fuel tank and centralized grease fittings, these mini excavators are as easy to maintain as they are to operate.
SAFE CAB
The high strength SWTC 5D cab meets no less than FOPS, TOPS, and ROPS requirements, which are standard and among the first features to ensure a safe and comfortable job in all application environments.
Despite its compact size from the outside, the SWTC 5D offers easy access to the roomy cab, welcoming operators of all sizes from everywhere in Europe.
Thanks to the large windows, including at the top and the well organized cab, everything is designed to keep operators comfortable and productive as well as safe.
BEST VALUE FOR MONEY
Sunward is your smartest investment in reliability, performance and high ROI. Indeed, the SWTC 5D's expert design includes a well-thought-out selection of components that streamline operation and maintenance. Our design choices result in a machine that provides so many standard features, premium-brand key components, and capabilities at the right price.
And furthermore, Sunward’s own genuine spare parts are economical as well – and all of this best value for money is crowned by up to 3 years of warranty, standard for all Sunward products.
On top of its EU certification, the SWTC 5D has been developed specifically for the need of the European market. It meets of course the EU Stage V standard emissions requirements.
EXTREME MOBILITY
Thanks to its compact dimensions, the Sunward SWTC 5D telescopic crawler crane can be ready for action in a record time.
The machine can be transported easily to the site at a relatively low cost.
Then it can move safely on site, whatever the terrain conditions, thanks to the crawlers.
Last but not least, its compact size offers excellent maneuverability and makes it easy to operate in very tight areas
POWERFUL & RELIABLE ENGINE
At the heart of the SWTC 5D, we chose the Yanmar 4TNV98C engine complying with the European Union’s latest Stage V emission requirements.
This new generation engine features a common rail direct injection, assuring more precise fuel delivery and control, increased fuel economy, superior exhaust treatment, reduced emissions, and improved performances.
In terms of power, Yanmar 4TNV98C offers an output of 46.2 kW, allowing powerful performance to meet a wide range of applications.
PREMIUM COMPONENTS
All key components in Sunward excavators are carefully selected, from Yanmar engine to hydraulics.
Because hydraulics are often regarded as the heart of the machine, Sunward sources exclusively from the highest references in the market. Bosch Rexroth is the market leader in hydraulic pump innovation, design, and manufacture. So, it was natural for Sunward to select this premium brand to be our main pump supplier, as well as valves and joysticks. Our Bosch Rexroth hydraulic pumps deliver greater precision and reliability – which naturally reflects on the reliability of this machine.
We also selected KYB or Flutek for the traveling and swing motors.
HIGH REACH CAPACITY
The SWTC 5D has exceptional reach capacities. It very well positioned on the market with its almost 16.5 m long reach.
HEAVYLIFTER
Despite its compact size, the SWTC 5D is full of power, offering exceptional lifting capacities up to 5 000 kg (max.) that easily rivals the long-established compact telescopic crawler cranes on the market.
EASY TO MAINTAIN
To reduce maintenance time and cost for the SWTC 5D, the covers at the rear and on the side provide direct access to the service points. The standard service points – for fuel, oil and air filters – are directly accessed via the cover at the rear.
So, with very easy access to the fuel tank and centralized grease fittings, these mini excavators are as easy to maintain as they are to operate.
SAFE CAB
The high strength SWTC 5D cab meets no less than FOPS, TOPS, and ROPS requirements, which are standard and among the first features to ensure a safe and comfortable job in all application environments.
Despite its compact size from the outside, the SWTC 5D offers easy access to the roomy cab, welcoming operators of all sizes from everywhere in Europe.
Thanks to the large windows, including at the top and the well organized cab, everything is designed to keep operators comfortable and productive as well as safe.
BEST VALUE FOR MONEY
Sunward is your smartest investment in reliability, performance and high ROI. Indeed, the SWTC 5D's expert design includes a well-thought-out selection of components that streamline operation and maintenance. Our design choices result in a machine that provides so many standard features, premium-brand key components, and capabilities at the right price.
And furthermore, Sunward’s own genuine spare parts are economical as well – and all of this best value for money is crowned by up to 3 years of warranty, standard for all Sunward products.
DIMENSIONS
Operating weight 10 910 kg
Shipping length 5 350 mm
Shipping width 2 260 mm
Height over cabin 2 835 mm
ENGINE
Model Yanmar 4TNV98C-SSU
Emission rating EU Stage V
Displacement 3.319 L
Rated power output 46.2 kW
WORKING RANGE
Max. Rated Load capacity 5 000 kg
Length of basic boom 4.63 m
Length of full extension main boom 16.5 m
Max. Lifting height of basic boom 5.3 m
Max. Lifting height of the longest main boom 16.5 m
Operating weight 10 910 kg
Shipping length 5 350 mm
Shipping width 2 260 mm
Height over cabin 2 835 mm
ENGINE
Model Yanmar 4TNV98C-SSU
Emission rating EU Stage V
Displacement 3.319 L
Rated power output 46.2 kW
WORKING RANGE
Max. Rated Load capacity 5 000 kg
Length of basic boom 4.63 m
Length of full extension main boom 16.5 m
Max. Lifting height of basic boom 5.3 m
Max. Lifting height of the longest main boom 16.5 m
