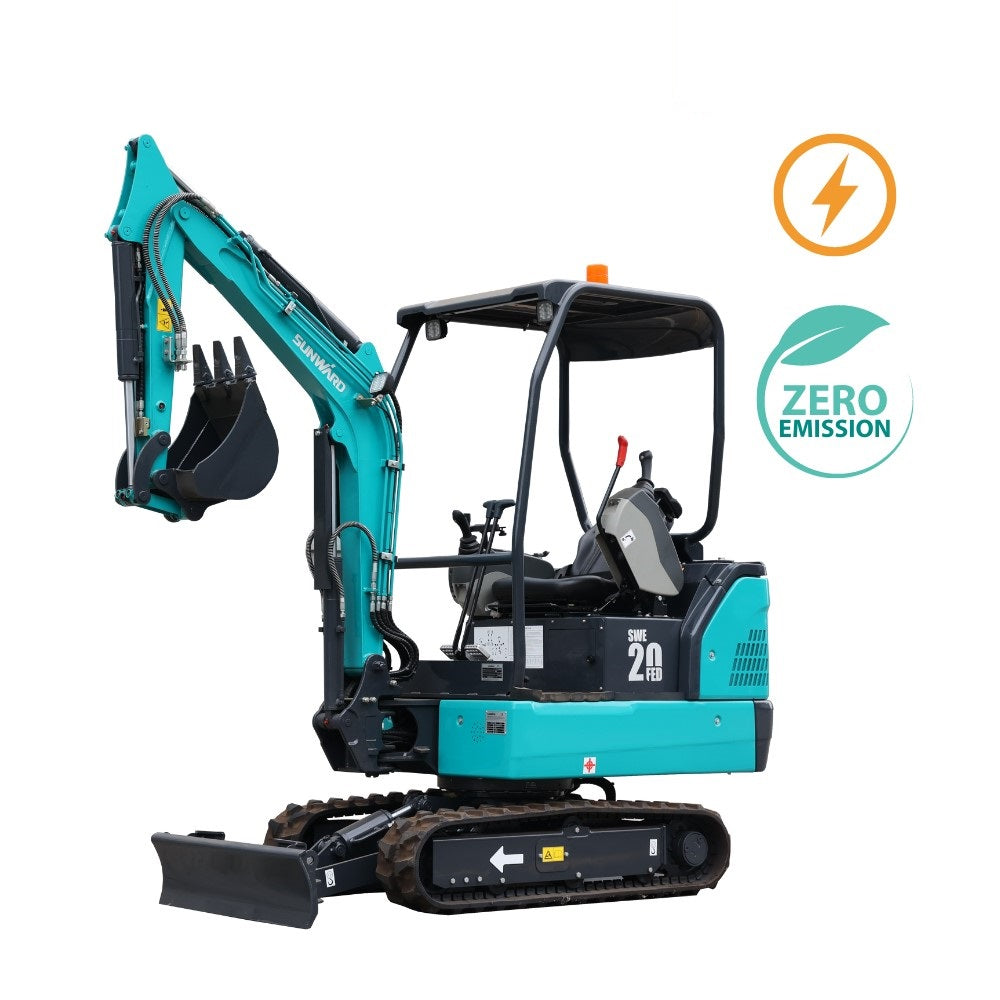

SWE 20FED Mini Excavator ELECTRIC
The Sunward SWE 20FED is the first electric mini excavator from Sunward.
Based on our bestseller in the European market, the SWE 20F, the SWE 20FED combines durability, reliability, performance, and easy maintenance with the best of technology developed by Sunward.
This 2 ton excavator, available in cab or canopy, will make a mark on the new market of electric excavators with its exceptional value for money.

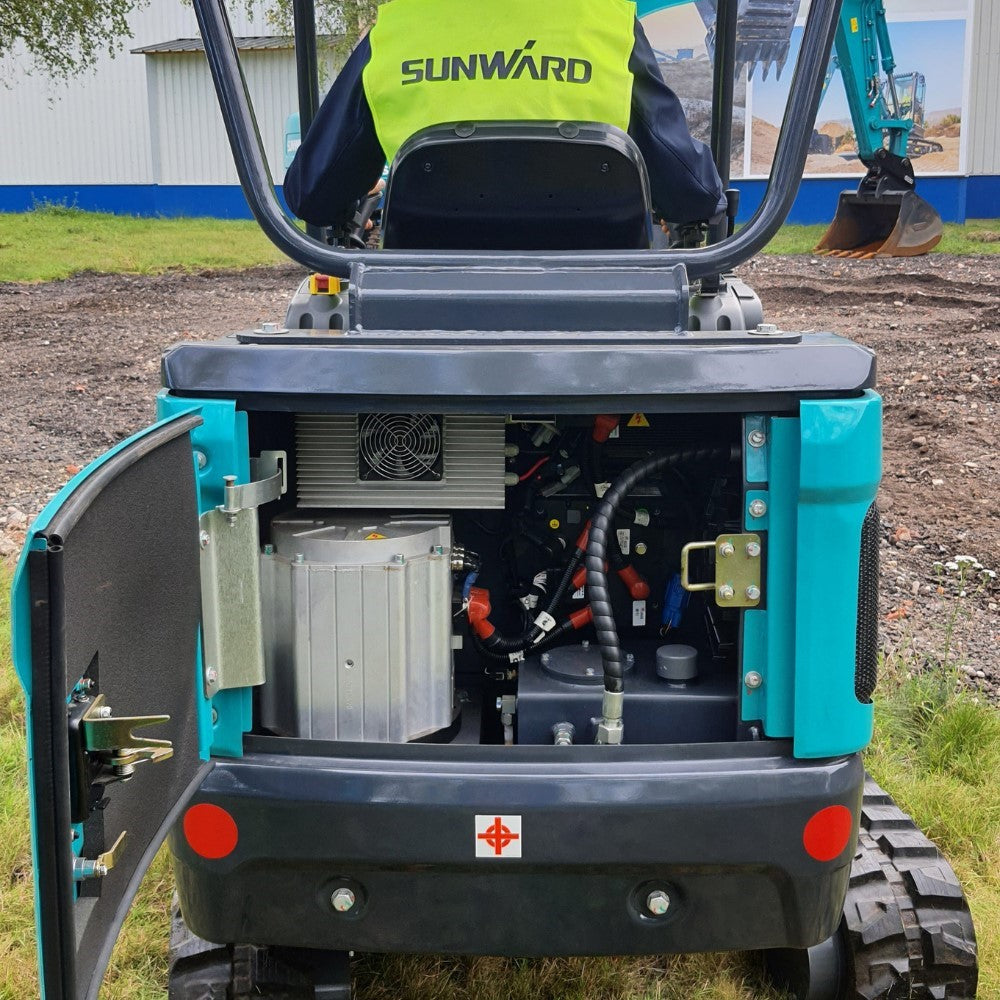

Featuring a lithium-ion battery and a three-phase asynchronous motor, it has an autonomy of more than 6 hours in full working load, it can benefit from a fast charge in less than 2 hours or from a full charge in 7 hours.
The SWE 20FED remains a very compact machine, with a tail swing radius of just 1 210 mm, allowing it to work in the tightest of environments.
It is mainly suitable for urban areas with high requirements in terms of exhaust gas emissions and noise, but also high and cold plateaus, with large temperature differences and insufficient oxygen supply, and finally construction sites in relatively confined spaces underground and tunnels
MADE FOR EUROPE
On top of its EU certification, the Sunward SWE 20FED, like all Sunward machines on the European market, is designed to meet European customer needs.
POWERFUL & RELIABLE MOTOR
We chose the powerful three-phase asynchronous motor, ensuring intensive work in a severe environment.
PREMIUM COMPONENTS
All key components in Sunward excavators are carefully selected, from lithium-ion battery and three-phase asynchronous motor to hydraulics. Because hydraulics are often regarded as the heart of the machine, Sunward sources exclusively from the highest references in the market.
FLEXIBLE AND STABLE
The SWE 20FED’s extendable undercarriage – the track width can be extended from 990 mm to 1360 mm – provides sturdy stability, ensuring safe and comfortable operation in all kinds of job applications. The adjustable crawler track is ideal in confined areas or when greater stability is required.
HIGH WORKING RANGE
The SWE 20FED has exceptional digging forces of over 22.7 kN (bucket) and almost 9.8 kN (arm), which easily rival the 2-ton excavator competitors on the market. And when it comes to its long-reach digging capacity, the SWE 20FED’s boom cylinder design provides a reach that’s over 4 meters (4 040 mm) long.
READY FOR A VARIETY OF APPLICATIONS
A mini-excavator’s versality starts with how well it is designed for transportation. The SWE 20FED does more than simply align with the EU’s transportation regulations – truly compact (990 mm width) and lightweight (1 920 kg), it allows easy, safe, and secure transport. The machine can be safely transported on a small trailer with up to 3 buckets and a hydraulic breaker, while maintaining a total transport weight close to 2 tons. The SWE 20FED can adapt to any job site, thanks to the complete auxiliary settings built-in as standard – providing fully adjustable pressure and flow monitoring. This results in no less than 3 separate auxiliary lines as standard (while the market provides 1 to 2 lines as standard). Thus, a wide range of attachments can be easily fitted to answer a variety of applications.
BEST VALUE FOR MONEY
Sunward is your smartest investment in reliability, performance and high ROI. Indeed, the SWE 20FED’s expert design includes a well-thought-out selection of components that streamline operation and maintenance. Our design choices result in a machine that provides so many standard features, premium-brand key components, and capabilities at the right price.
And furthermore, Sunward’s own genuine spare parts are economical as well – and all of this best value for money is crowned by up to 5 years of warranty, standard for all Sunward products.
On top of its EU certification, the Sunward SWE 20FED, like all Sunward machines on the European market, is designed to meet European customer needs.
POWERFUL & RELIABLE MOTOR
We chose the powerful three-phase asynchronous motor, ensuring intensive work in a severe environment.
PREMIUM COMPONENTS
All key components in Sunward excavators are carefully selected, from lithium-ion battery and three-phase asynchronous motor to hydraulics. Because hydraulics are often regarded as the heart of the machine, Sunward sources exclusively from the highest references in the market.
FLEXIBLE AND STABLE
The SWE 20FED’s extendable undercarriage – the track width can be extended from 990 mm to 1360 mm – provides sturdy stability, ensuring safe and comfortable operation in all kinds of job applications. The adjustable crawler track is ideal in confined areas or when greater stability is required.
HIGH WORKING RANGE
The SWE 20FED has exceptional digging forces of over 22.7 kN (bucket) and almost 9.8 kN (arm), which easily rival the 2-ton excavator competitors on the market. And when it comes to its long-reach digging capacity, the SWE 20FED’s boom cylinder design provides a reach that’s over 4 meters (4 040 mm) long.
READY FOR A VARIETY OF APPLICATIONS
A mini-excavator’s versality starts with how well it is designed for transportation. The SWE 20FED does more than simply align with the EU’s transportation regulations – truly compact (990 mm width) and lightweight (1 920 kg), it allows easy, safe, and secure transport. The machine can be safely transported on a small trailer with up to 3 buckets and a hydraulic breaker, while maintaining a total transport weight close to 2 tons. The SWE 20FED can adapt to any job site, thanks to the complete auxiliary settings built-in as standard – providing fully adjustable pressure and flow monitoring. This results in no less than 3 separate auxiliary lines as standard (while the market provides 1 to 2 lines as standard). Thus, a wide range of attachments can be easily fitted to answer a variety of applications.
BEST VALUE FOR MONEY
Sunward is your smartest investment in reliability, performance and high ROI. Indeed, the SWE 20FED’s expert design includes a well-thought-out selection of components that streamline operation and maintenance. Our design choices result in a machine that provides so many standard features, premium-brand key components, and capabilities at the right price.
And furthermore, Sunward’s own genuine spare parts are economical as well – and all of this best value for money is crowned by up to 5 years of warranty, standard for all Sunward products.
TYPE OF CAB
Cab or Canopy
DINENSIONS
Operating weight 1 920 kg
Standard bucket capacity 0.035 m³
Shipping length 3 840 mm
Shipping width 990 mm
Height over cabin 2 361 mm
MOTOR
Motor type Type 3-Phase asynchronous
Emission rating Zero emission
Power 10 Kw
HYDRAULIC SYSTEM
Type Single axial swashplate piston pump
Displacement 50 L/min
Pressure of main relief valve 24.5 MPa
WORKING RANGE
Max. digging depth 2 380 mm
Max. digging reach 4 040 mm
Max. bucket digging force 22.7 kN
Max. arm digging force 9.8 kN
Cab or Canopy
DINENSIONS
Operating weight 1 920 kg
Standard bucket capacity 0.035 m³
Shipping length 3 840 mm
Shipping width 990 mm
Height over cabin 2 361 mm
MOTOR
Motor type Type 3-Phase asynchronous
Emission rating Zero emission
Power 10 Kw
HYDRAULIC SYSTEM
Type Single axial swashplate piston pump
Displacement 50 L/min
Pressure of main relief valve 24.5 MPa
WORKING RANGE
Max. digging depth 2 380 mm
Max. digging reach 4 040 mm
Max. bucket digging force 22.7 kN
Max. arm digging force 9.8 kN
