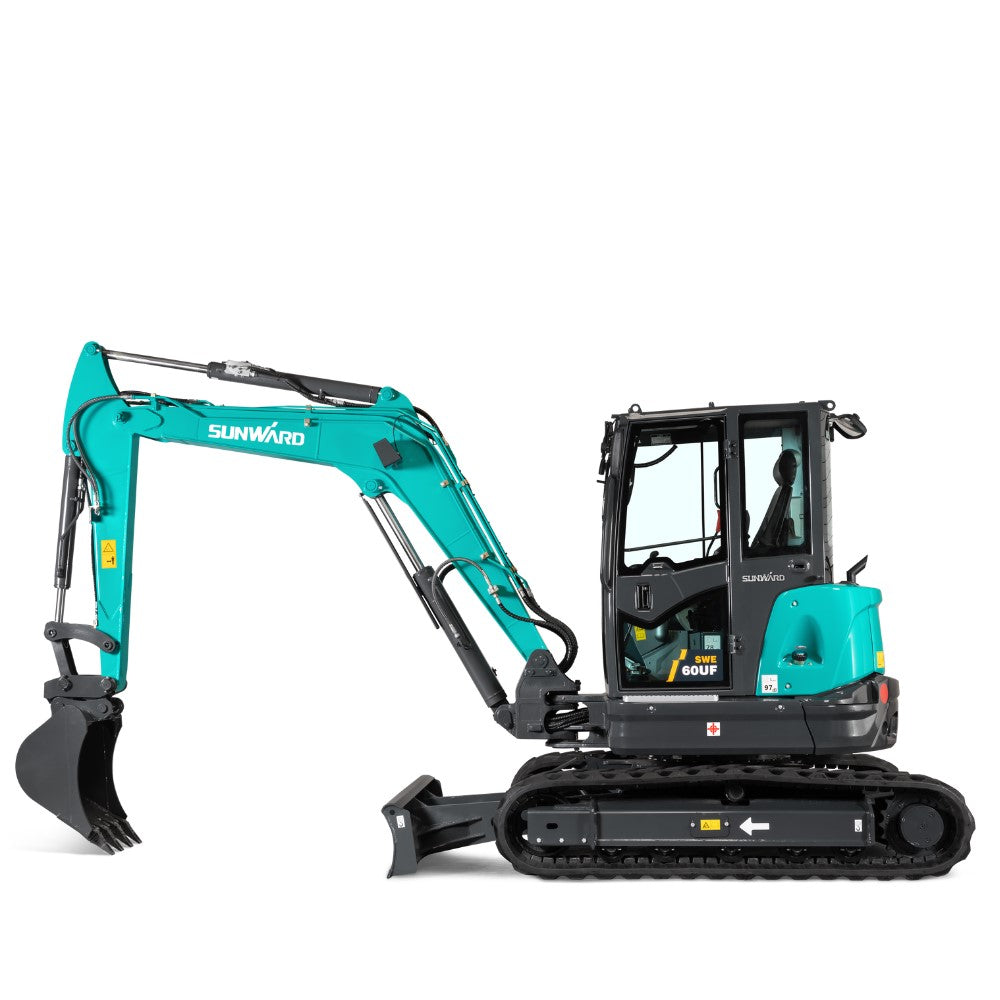

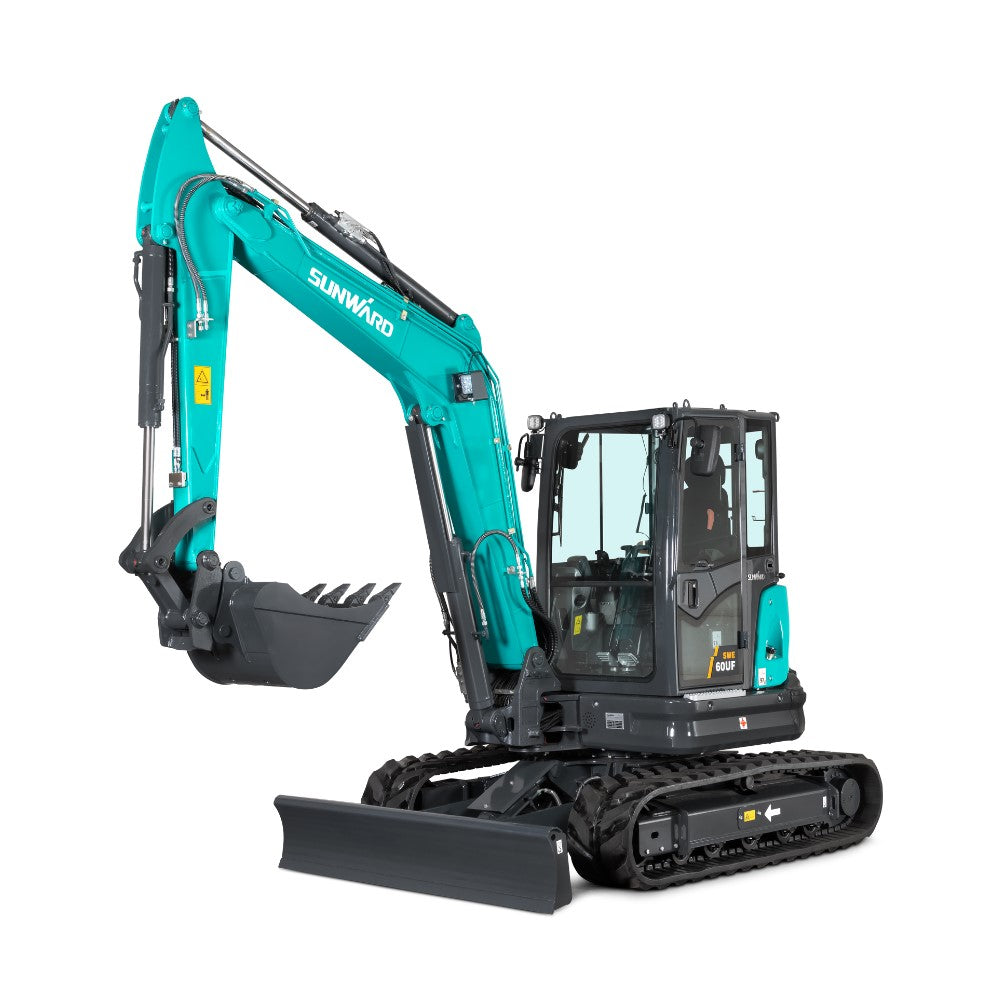

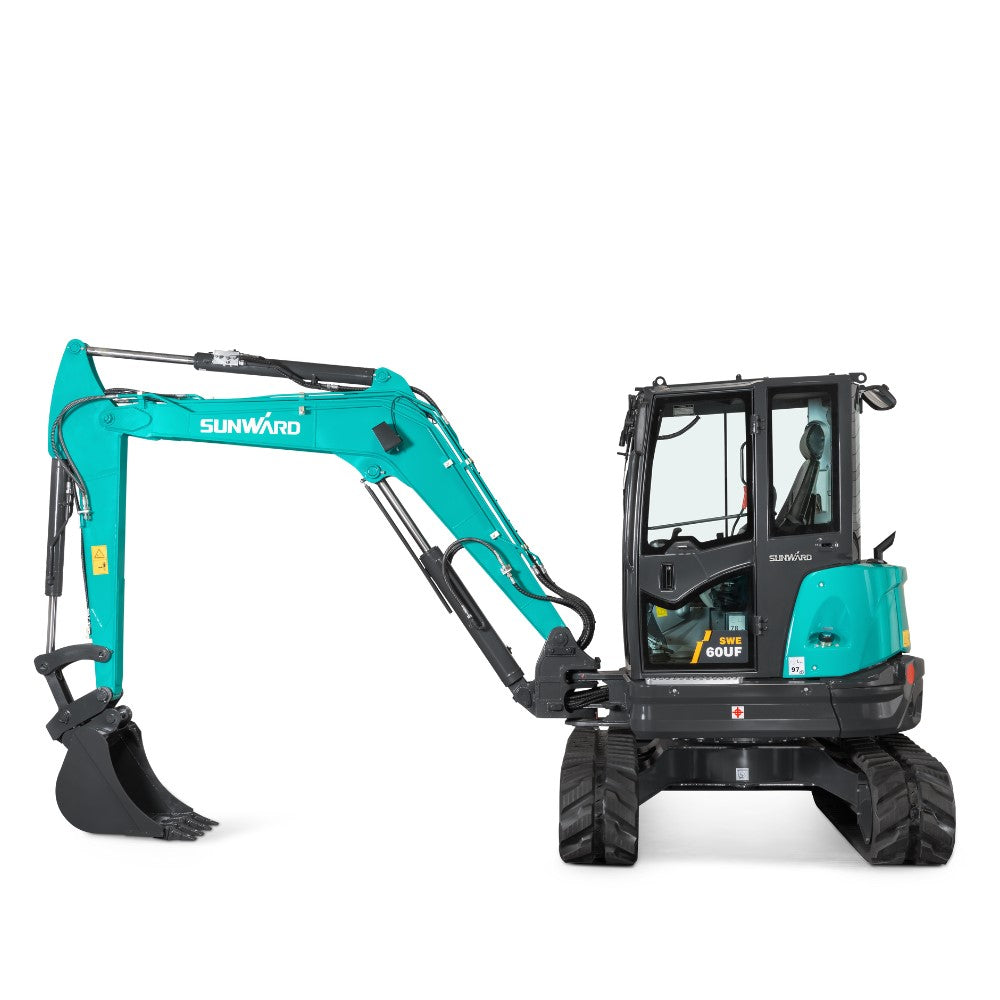

SWE 60UF Compact Excavator

The Sunward SWE 60UF is a compact excavator featuring a zero-tail swing. Thanks to its design, the SWE 60UF can offer great power at a reduced footprint, giving it the ability to fit into smaller spaces than other similar products.

It combines the power of the Kubota V2607-DI-T engine, delivering 36.5 kW, with incredible precision thanks to the dual proportional joysticks and the perfectly fitted hydraulic flow. Its exceptional digging reach performance means no worksite is off-limits.

Of course, because we know that safety and comfort should go hand-in-hand, the SWE 60UF keeps you safe and provides every comfort in all working conditions.

Last but not least, in the Sunward tradition to always offer the best value for money, the SWE 60UF is no exception since it offers many features and up to 5 years of warranty as standard, at the right price.

Discover all the other advantages of the Sunward SWE 60UF

Features and Benefits

MADE FOR EUROPE
On top of its EU certification, the Sunward SWE 60UF, like all Sunward machines on the European market, is designed to meet European customer needs.

POWERFUL & RELIABLE ENGINE
We chose the powerful Kubota V2607-DI-T engine for several good reasons. This engine is a vertical, water-cooled, 4-cycle diesel engine with a capacity of 36.5 kW. The Kubota V2607 offers powerful performance, exceptional reliability, and long service life to meet a wide range of applications. It also meets the EU Stage V emission regulations. The perfect fit for our reliable and versatile SWE 60UF.

PREMIUM COMPONENTS
All key components in Sunward excavators are carefully selected, from Kubota engine to hydraulics. Because hydraulics are often regarded as the heart of the machine, Sunward sources exclusively from the highest references in the market. For our Sunward SWE 60UF, we selected HENGLI to be our main supplier for the hydraulic pump, and KYB or Nachi for the swing motor traveling and swing motor. All these pumps and components for construction machinery are efficient, reliable, and space-saving. So, it’s no coincidence that Sunward selected them to contribute to the SWE 60UF’s reliability.

HIGH WORKING RANGE

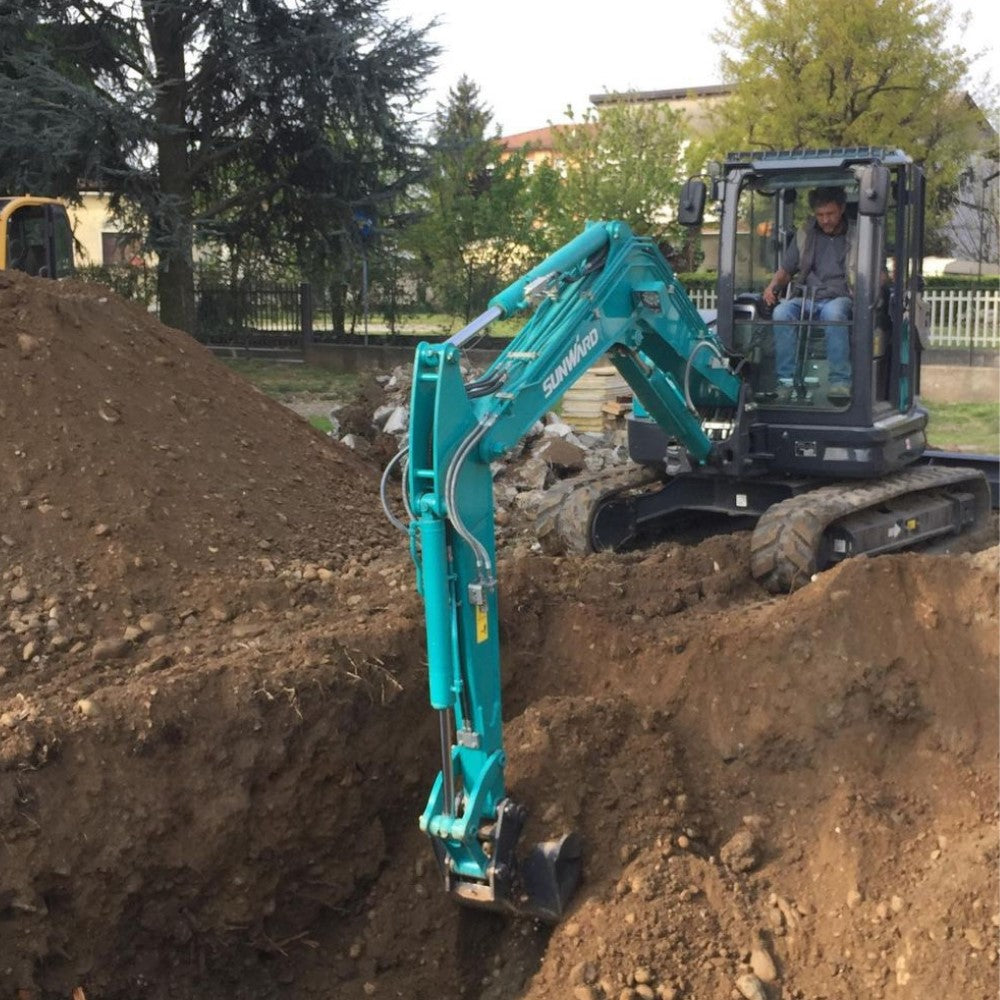

The SWE 60UF has exceptional digging forces – 46.8 kN (bucket) and 31.1 kN (arm) – easily rivaling all 6t excavator competitors on the market. And when it comes to its long-reach capacity, the SWE 60UF’s boom cylinder design provides a ground reach of over 6.1 meters (6 105 mm) and a digging reach that’s over 6.2 meters (6 235 mm) long – making this compact excavator the benchmark of its range.

READY FOR A VARIETY OF APPLICATIONS
A compact excavator’s versatility starts with how well it is designed. And in terms of design, the SWE 60UF is a really nice-looking excavator. This zero-tail compact excavator has truly compact dimensions (1 980 mm width) and is lightweight (5 700 ‒ 5 770 kg), allowing to bring power and easy work even if very tight areas, without any compromise on safety. Moreover, the SWE 60UF can adapt to any job site, thanks to the complete auxiliary settings built-in as standard – providing fully adjustable pressure and flow monitoring. This results in no less than 3 separate auxiliary lines and one line for hydraulic return as standard. Thus, a wide range of attachments can be easily fitted to answer a variety of applications.

WELL-EQUIPPED FROM THE OUTSET
This slightly Sunward SWE 60UF mini excavator has it all from the day it leaves the factory:
– Auto idle engine to save fuel and limit the engine’s consumption. – While other manufacturers usually use a flow throttle (because it’s cheaper), we at Sunward opt for a Load Sensing (hydraulic) system, which provides better energy saving possibilities.
– Safety valves for the boom cylinder for safer operations.
– Auto-shifting traveling motor for smooth operations to the operator.
– TOPS, FOPS & ROPS cab.
– Battery cut-off switch for safer operations and prolonged battery lifetime and power – which is especially appreciated in the cold weather of Scandinavian countries.
– Double Acting Hydraulic Circuit
– Factory-fitted Hydraulic Quick Hitch Lines

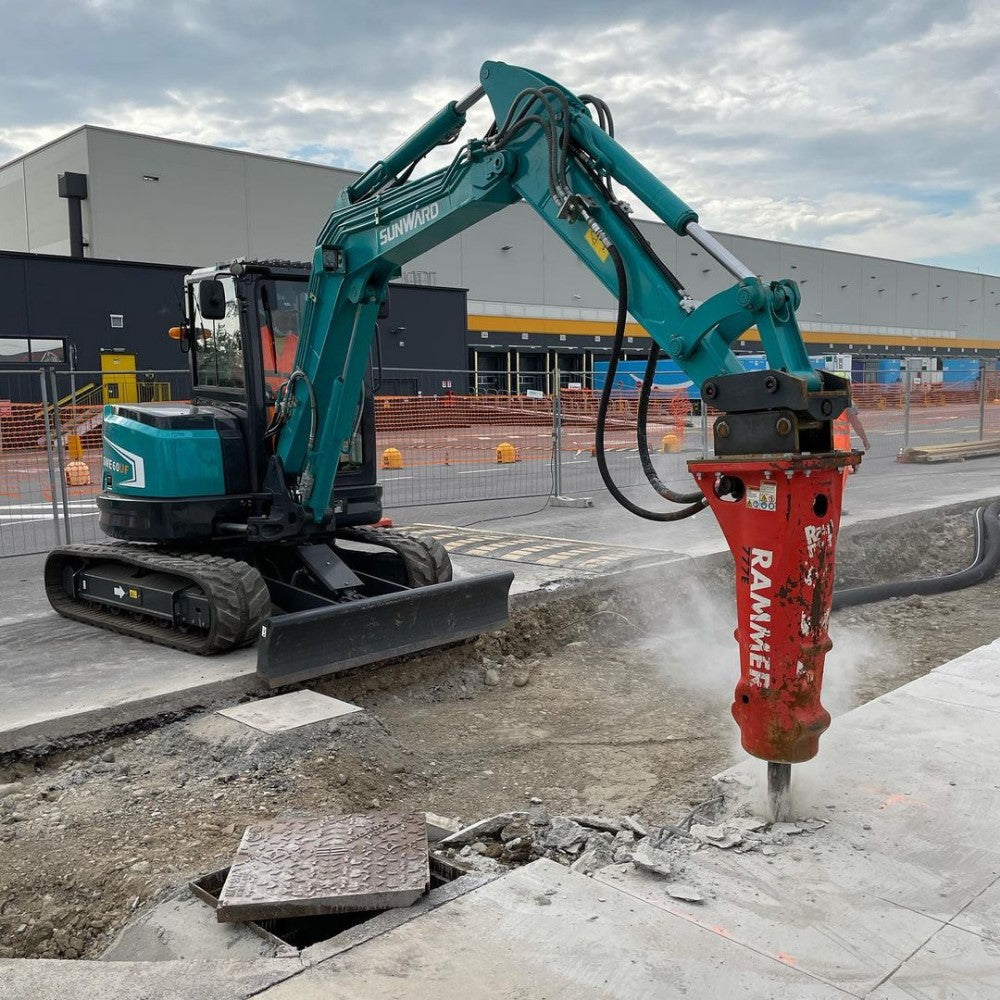

– Factory-fitted Hammer & Rotation Line
– Factory-fitted Case Drain Line
– Factory-fitted Dual Proportional Joysticks
– Factory-fitted Tiltrotator Configured Joystick Controls (tiltrotator of your choice)
– 3 LED work lights as standard: 2 on the front of the cab, and 1 on the left side of the boom

EASY TO MAINTAIN

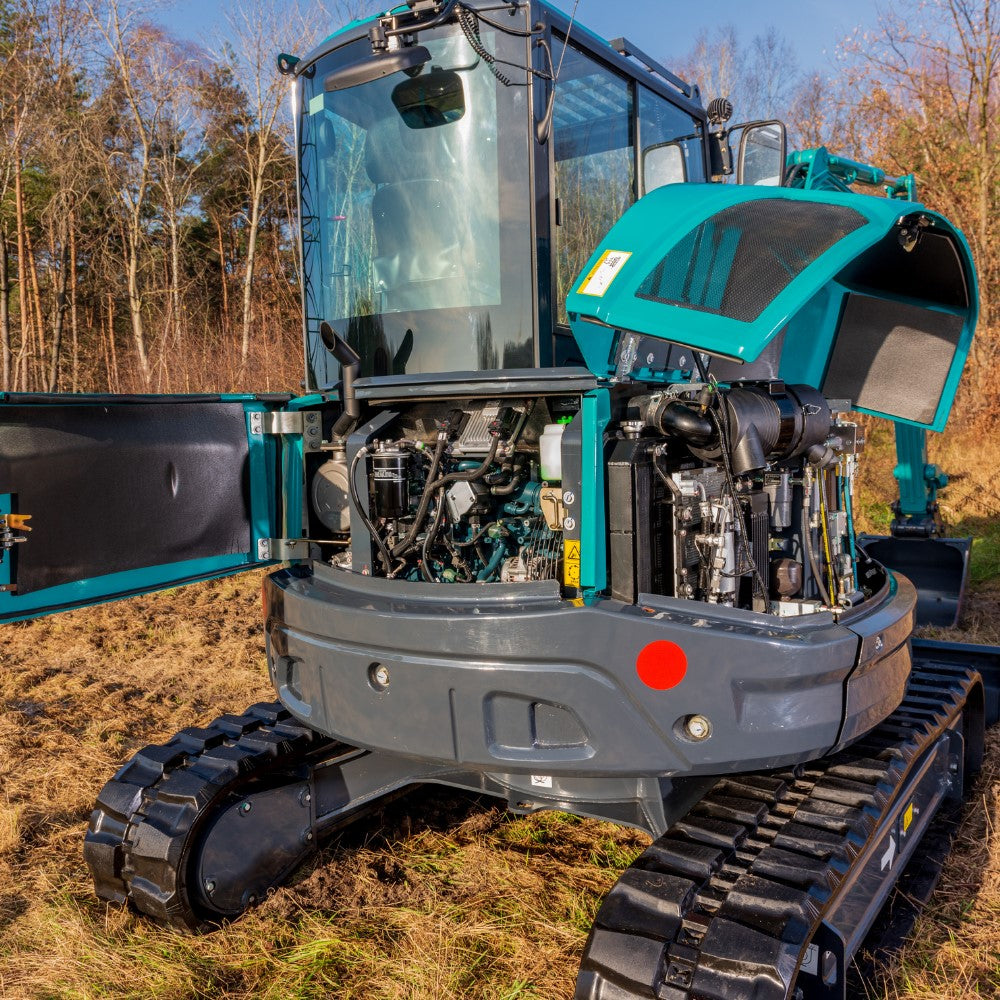

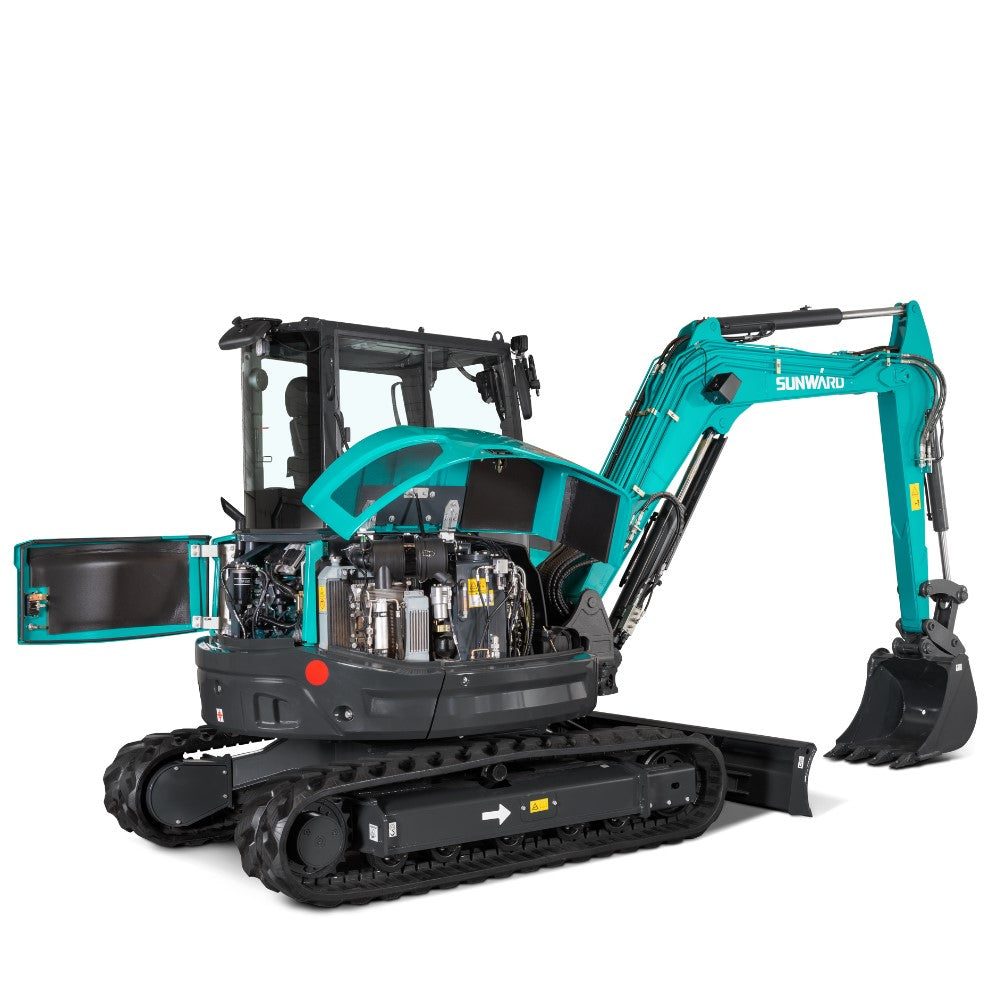

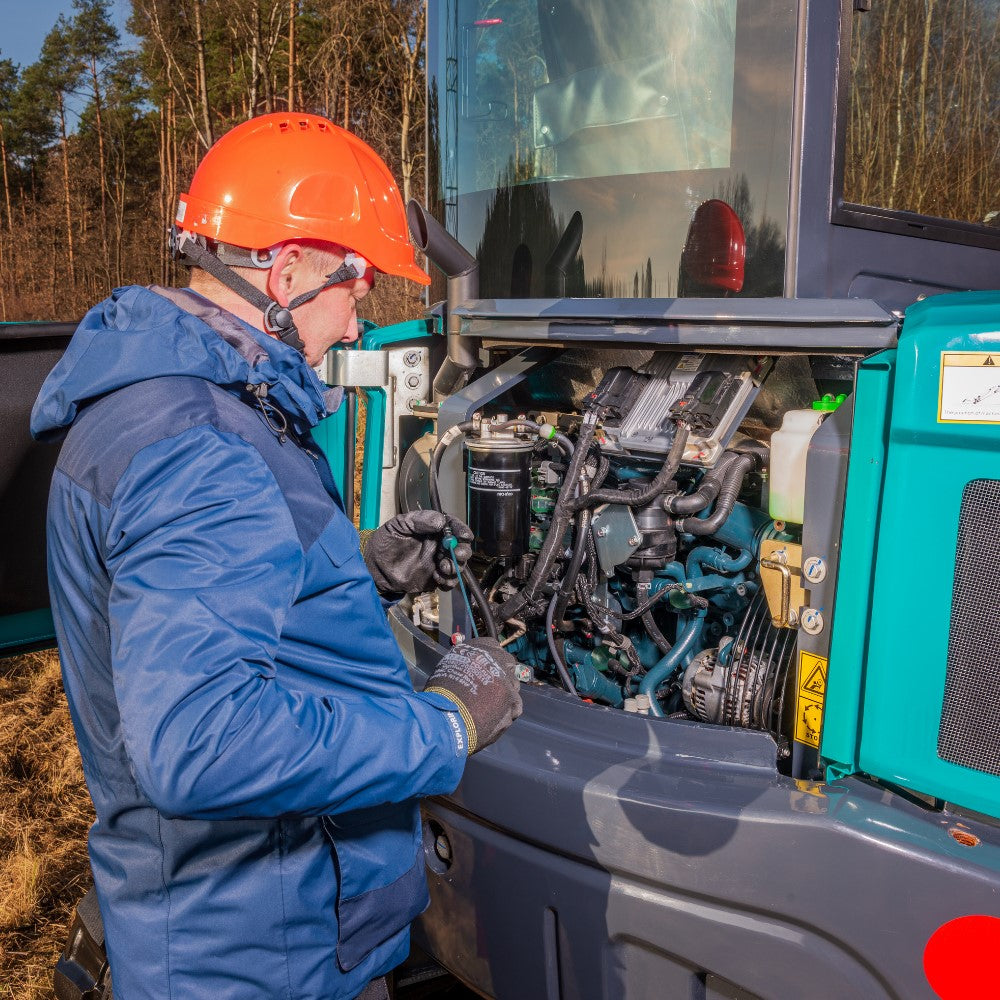

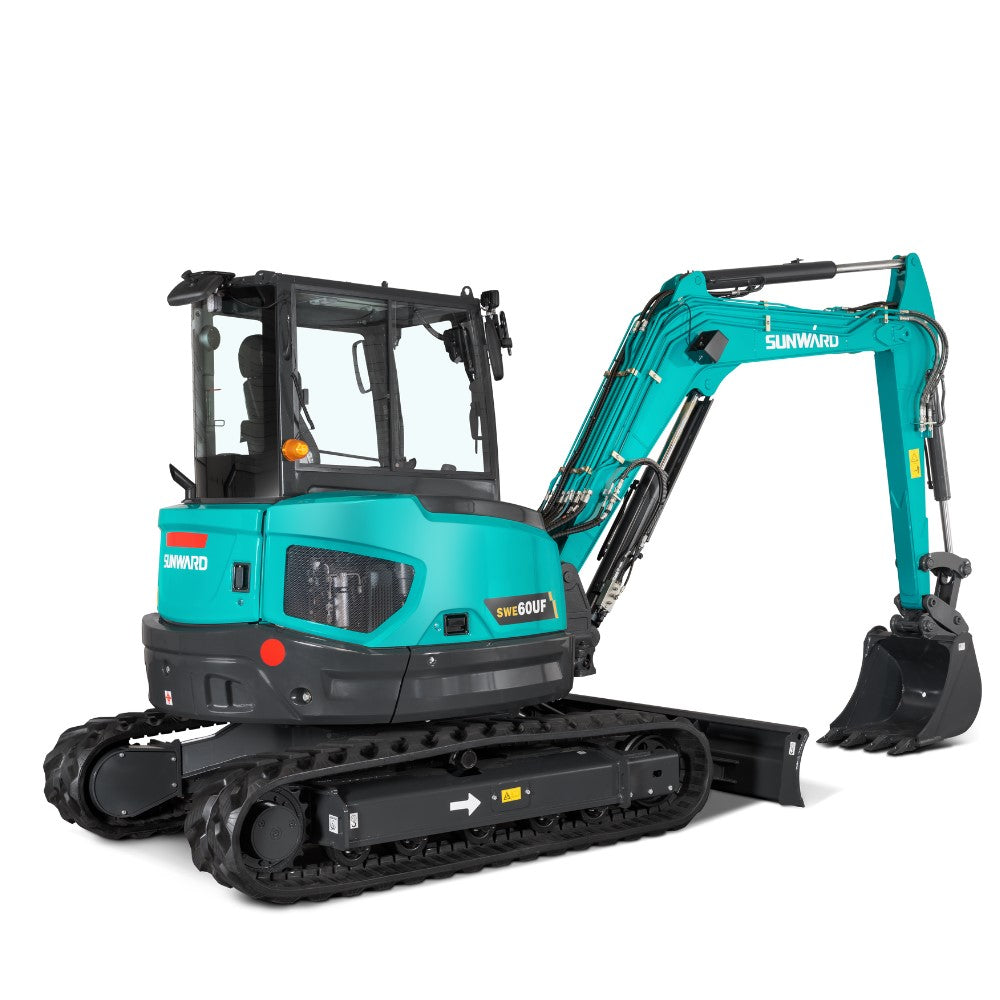

To reduce maintenance time and cost for the SWE 60UF, the covers at the rear and on the side provide direct access to the service points. The standard service points – for fuel, oil, and air filters – are directly accessed via the cover at the rear. So, with very easy access to the fuel tank and centralized grease fittings, these mini excavators are as easy to maintain as they are to operate.

SAFE CAB

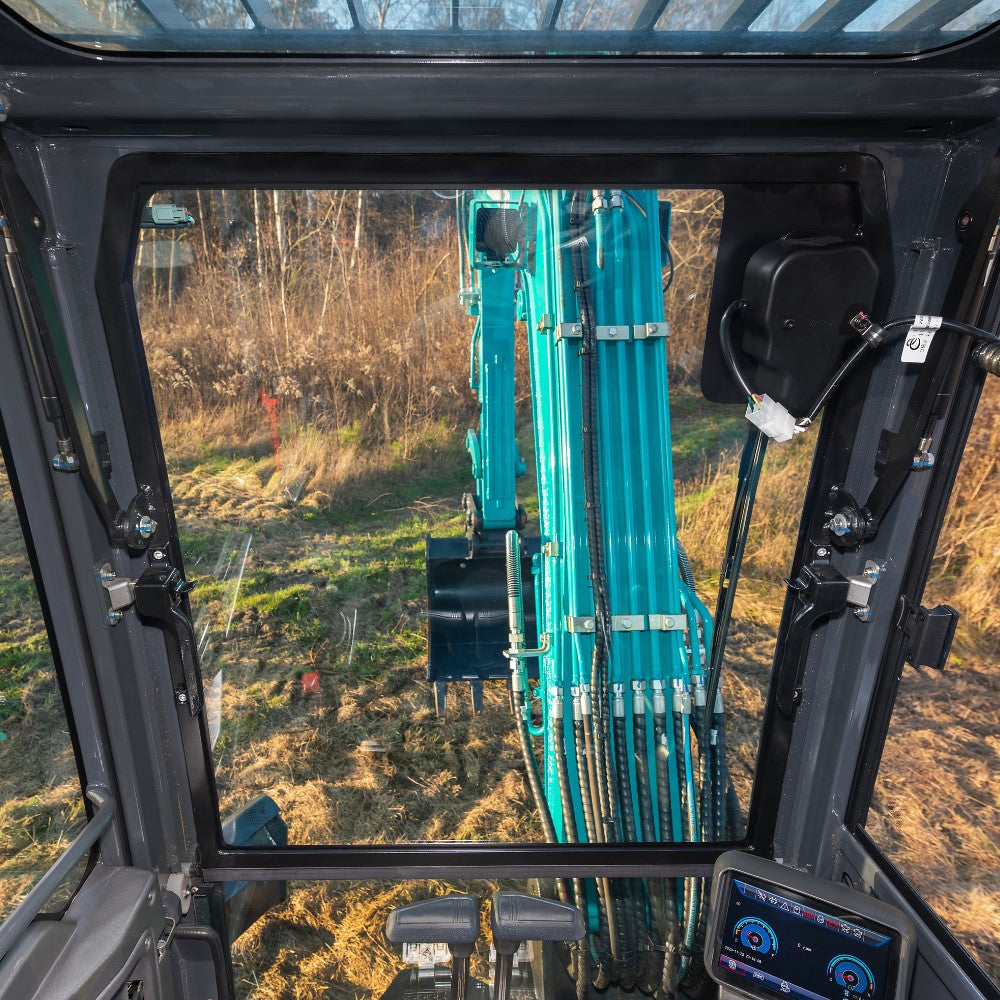

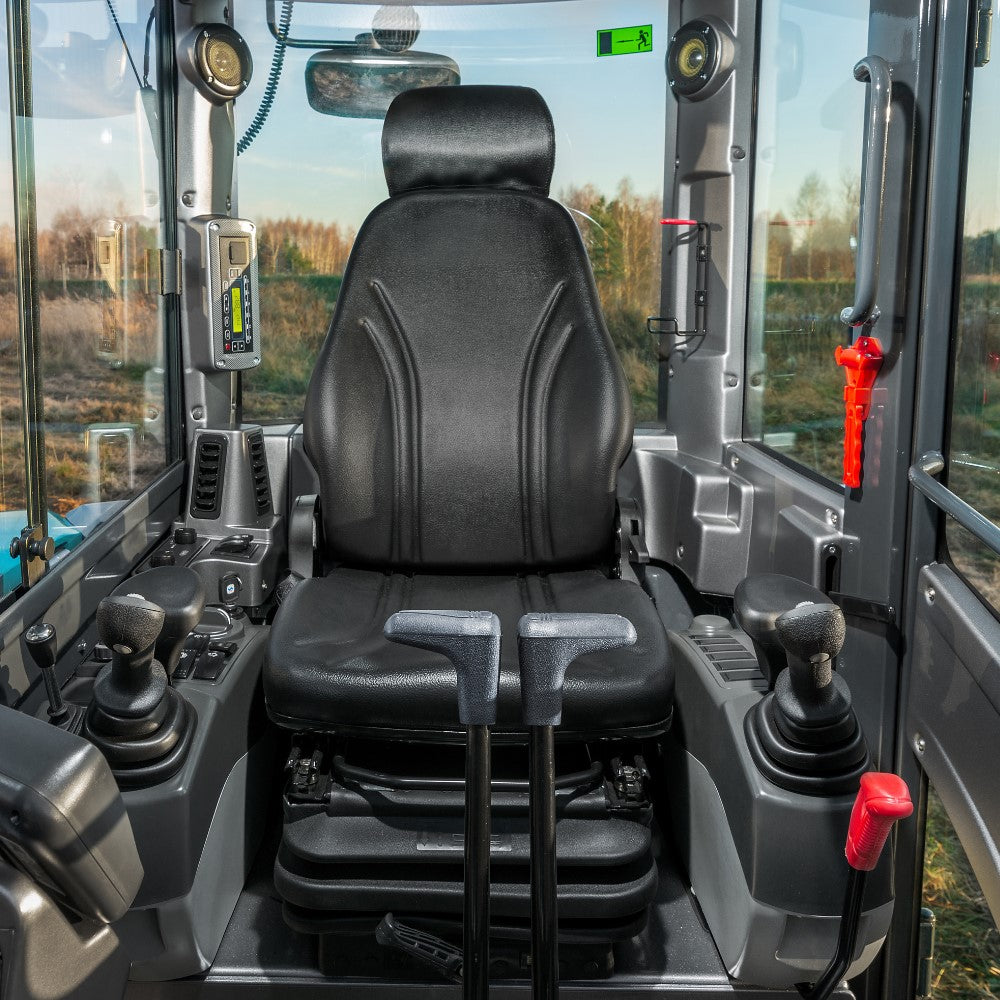

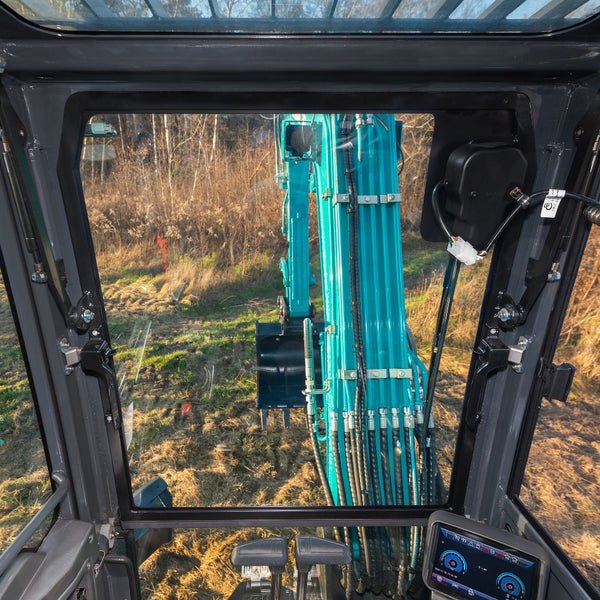

The high strength SWE 60UF cab meets no less than FOPS, TOPS, and ROPS requirements, which are standard and among the first features to ensure a safe and comfortable job in all application environments. Despite its compact size from the outside, the SWE 60UF offers easy access to the roomy cab, welcoming operators of all sizes from everywhere in Europe. Thanks to the large windows and the well organized cab, everything is designed to keep operators comfortable and productive as well as safe.

BEST VALUE FOR MONEY
Sunward is your smartest investment in reliability, performance, and high ROI. Indeed, the SWE 60UF’s expert design includes a well-thought-out selection of components that streamline operation and maintenance. Our design choices result in a machine that provides so many standard features, premium-brand key components, and capabilities at the right price.
And furthermore, Sunward’s own genuine spare parts are economical as well – and all of this best value for money is crowned by up to 3 years of warranty, standard for all Sunward products.

Specifications

View Product Brochure View Product Video

Vendor: Sunward Machinery

On Site Demo Available

Want to try before you buy? Visit our site and get a hands-on demo of this product in the company of a Hamstead expert. Just choose the option in the enquiry form and one of the team will get back to you.

Of course, because we know that safety and comfort should go hand-in-hand, the SWE 60UF keeps you safe and provides every comfort in all working conditions.

Discover all the other advantages of the Sunward SWE 60UF

All new Sunward purchases come with a 5 year guarantee ensuring your machinery is fully covered for any issues. This gives you that added protection and peace of mind when working on costly projects and comes courtesy of Sunward Machinery and Hamstead Plant.

With over 100 years combined experience in the business we know about construction projects and equipment. Over the years we have worked hard to ensure our product range and knowledge meets the expectations of our customers so if you have any questions or need some guidance then we are always happy to help. As one of the leading Sunward machinery dealers in the UK when you buy from us you will receive an unparalleled level of support which makes us confident we are right choice for your business.
